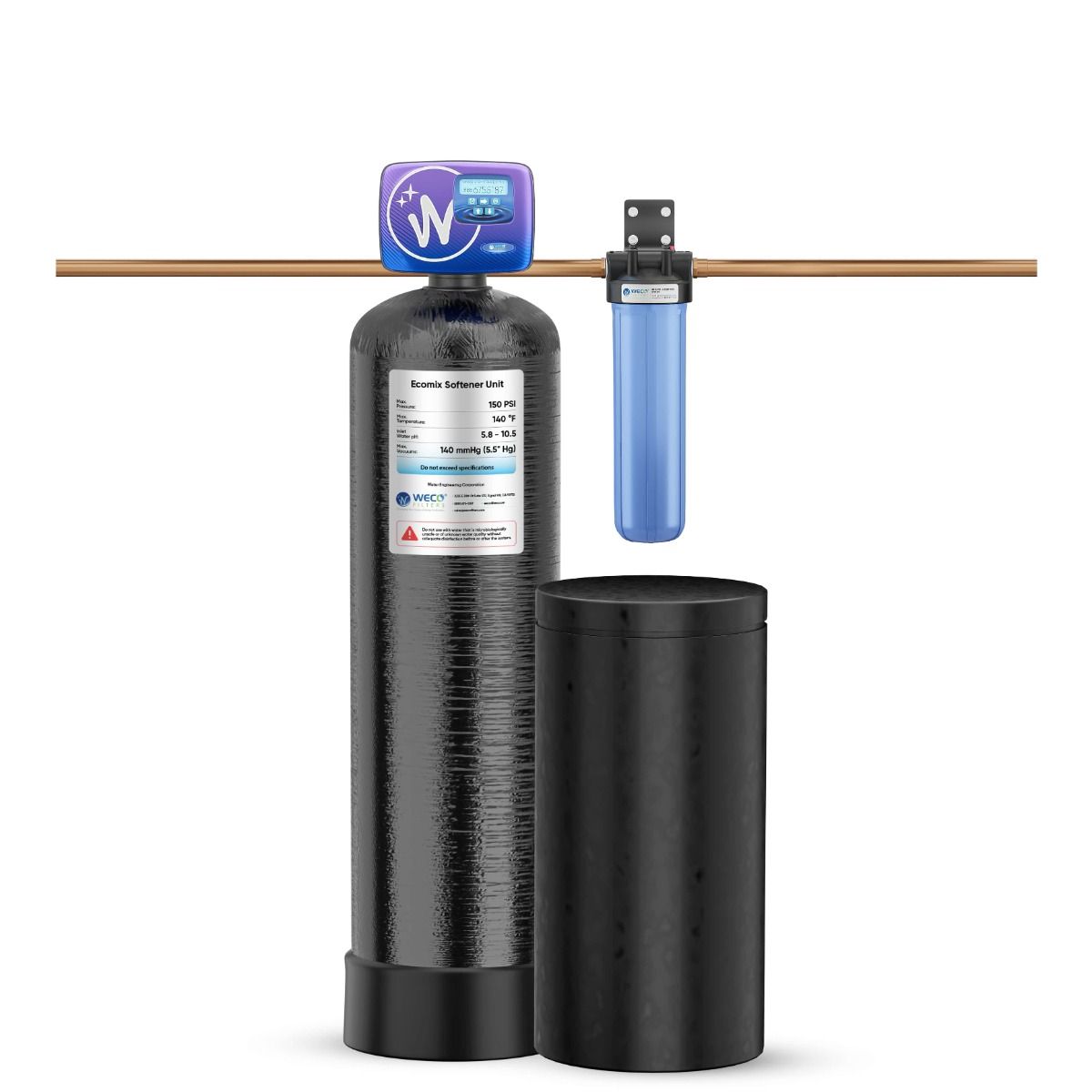

WECO Whole House Backwash Filter / Softener with EcoMix Advanced Softener Media and Big Blue Sediment Pre-Filter for the Reduction of Hardness, Iron, Manganese and Tannins from Potable Water
SKU
ECMX-SXT
3
Reviews
Add Your Review
Related Products
- State-of-the-art water filter + softener combination using EcoMix proprietary advanced softening media for the reduction of hardness, iron, manganese and tannins from problematic water sources.
- Say goodbye to mineral scale build-up on sinks, faucets, shower doors and other plumbing fixtures.
- Prevents mineral scale from clogging shower heads, faucet aerators and reduces scrubbing and cleaning of bathtubs and shower stalls.
- Reduces white deposits on silverware and glassware.
- Put an end to red and orange stains in sinks, bathtubs, showers and toilets.
- Removes tannins that impart an earthy taste/odor to water. Tannins in water also block performance by UV ray systems.
- Safeguards coffee makers, ice machines and dishwashers from iron oxide damage.
- Includes a big blue sediment pre-filter that removes sand, grit, precipitated mineral particles, insoluble iron oxide and other debris down to 5 microns.
- Automatically backwashes and rinses the filter/softener media and recharges with regular softener salt.
- Easy to use touchpad controls allow quick control over all features and settings.
- Optional attractive and durable stainless steel resin tank jacket available.
- Low operational cost. Can be used for both residential and commercial / industrial applications.
- 1" MNPT connector set with bypass assembly included.
- Made in U.S.A.
WECO Whole House Backwash Filter / Softener with EcoMix Advanced Softener Media and Big Blue Sediment Pre-Filter for the Reduction of Hardness, Iron, Manganese and Tannins from Potable Water
ECOMIX is an advanced softening material for the reduction of hardness, iron, manganese and tannins from potable water. The media is regenerated in the same manner as a standard water softener with sodium chloride available as standard salt pellets at any local hardware store.
ECOMIX has the ability to reduce ferrous and organic iron by adsorption and oxidation on the surface of the media.
System comes standard with a SXT backwash control valve internally sized to your specific model flow requirements and a big blue sediment pre-filter that removes sand, grit, precipitated mineral particles, insoluble iron oxide and other debris down to 5 microns.
Operational Parameters
EcoMix Certifications
- NSF/ANSI Standard 44 Residential Cation Exchange Water Softeners
- NSF/ANSI Standard 61 Drinking Water System Components - Health Effects
- NSF/ANSI Standard 372 Drinking Water System Components –Lead Content
Advantages
- Broad operating range for high iron reduction
- Mixture of natural and synthetic ion exchange adsorptive medias reduce equipment costs
- Effective hardness, iron, manganese and tannin reduction
- Reduces organic color due to tannins without the risk of odor common with other tannin reduction medias
- Not affected by Hydrogen Sulfide and may slightly reduce the rotten egg smell
- Low attrition loss for long bed life
- Resistant to chlorine, up to 1 ppm
- No amine smell
Operating Limits
- Max. Hardness 44 GPG
- Max. Iron 15 ppm
- Max. Tannins 5 ppm (TOC 17 ppm)
- Max. TDS 4000 ppm
- Resistant to chlorine, up to 1 ppm
- pH 5.0-9.0
- Service Flow 8-10 GPM/ft2
Media Parameters
- Ecomix-C comes in 25 liter bags (0.88 cu.ft). 12 liter bags are also available
- Use non chemically treated salt only, iron cleaning salt will reduce system life
- Continuous Flow Rate: 10 GPM
- Regeneration override in control valve should be set to 4 days in softener applications
Specifications
| Softener Size |
Service Flow (gpm) |
Backwash Flow (gpm) / Time |
Hardness Grains Capacity |
Pounds Salt / Recharge |
≈Width / Height |
≈Ship Weight |
|---|---|---|---|---|---|---|
| 10" x 54" | 4-6 | 3.0/15 Min | 17,000 | 8.4 | 11”/67” | 100 |
| 12" x 52" | 6-8 | 4.0/15 Min | 23,000 | 11 | 13”/65” | 125 |
| 13" x 54" | 8-10 | 5.0/15 Min | 28,500 | 14 | 14”/67” | 150 |
| 14" x 65" | 10-12 | 6.0/15 Min | 34,500 | 16.5 | 17”/79” | 200 |
| 16" x 65" | 12-15 | 7.0/15 min | 46,000 | 22 | 17”/82” | 250 |
Explore pilot testing problematic water chemistry with ECMX-1025-KT before full-scale deployment
