WECO ECMX-1025-KT EcoMix Media Softener Pilot Test Kit

SKU
ECMX-1025-KT
Rating:
100 % of 100
1  Review Add Your Review
Price: $88.27
Parts In stock
- +
  • EcoMix proprietary advanced softening media test kit for the reduction of hardness, iron, manganese and tannins from water.
  • Tannins impart an earthy taste/odor to water and also reduce performance of UV ray water treatment systems.
  • ¼" Tubing and ¼" garden hose adapter with 0.2 gallons a minute internal flow restrictor installed.

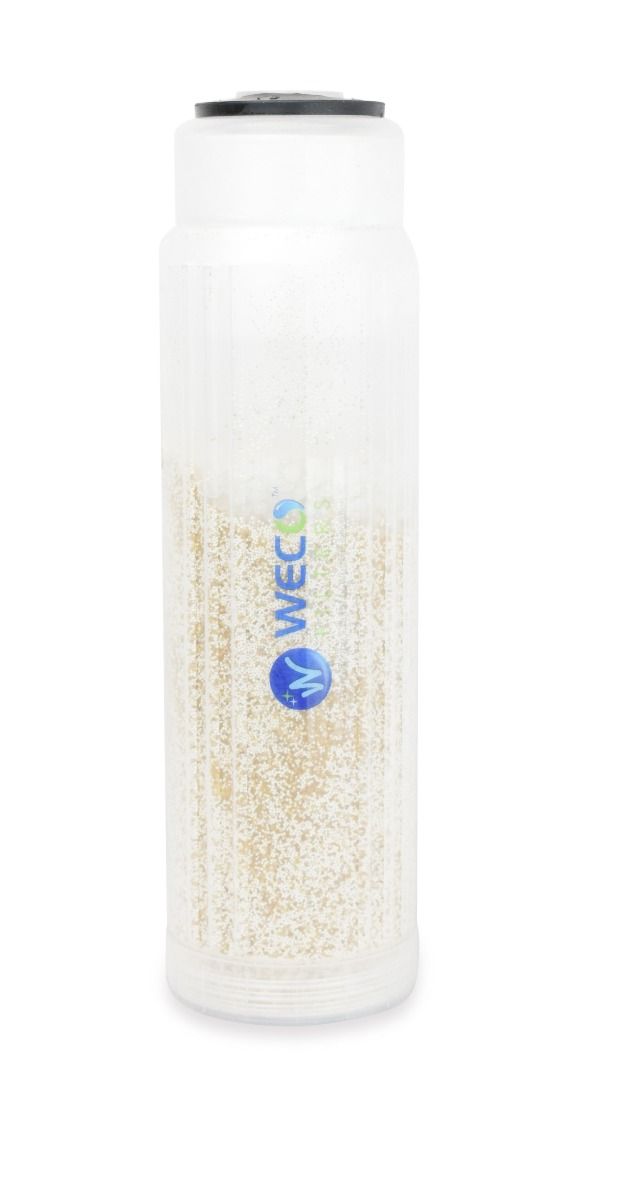

  • 2.5" x 10" Translucent specialty cartridge ~70% filled.
  • Labeled for reverse flow (typically used for pilot testing).

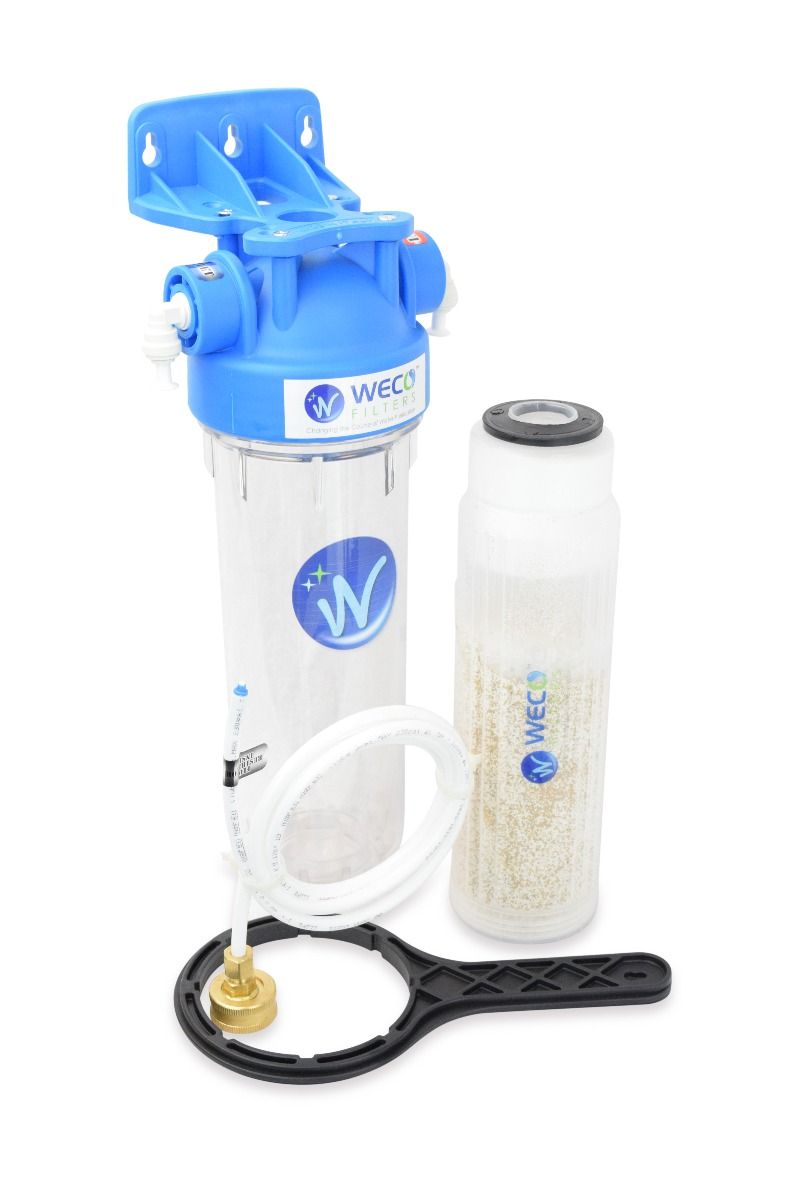

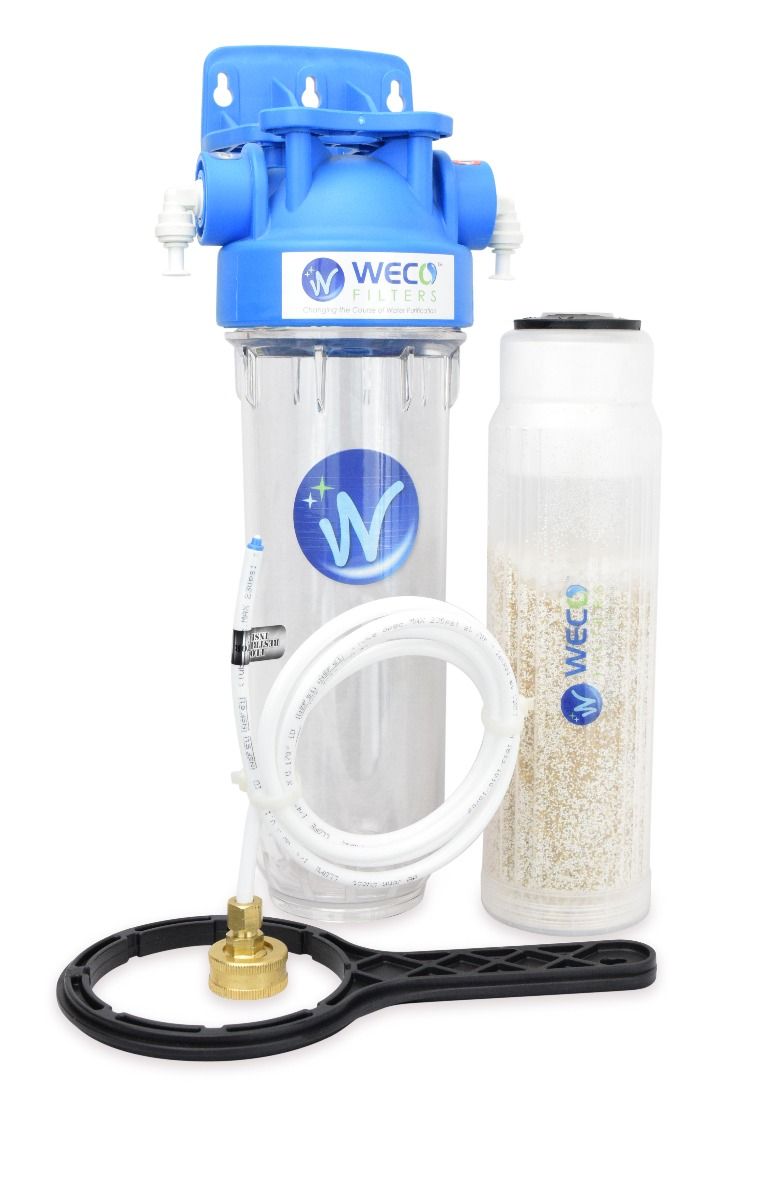

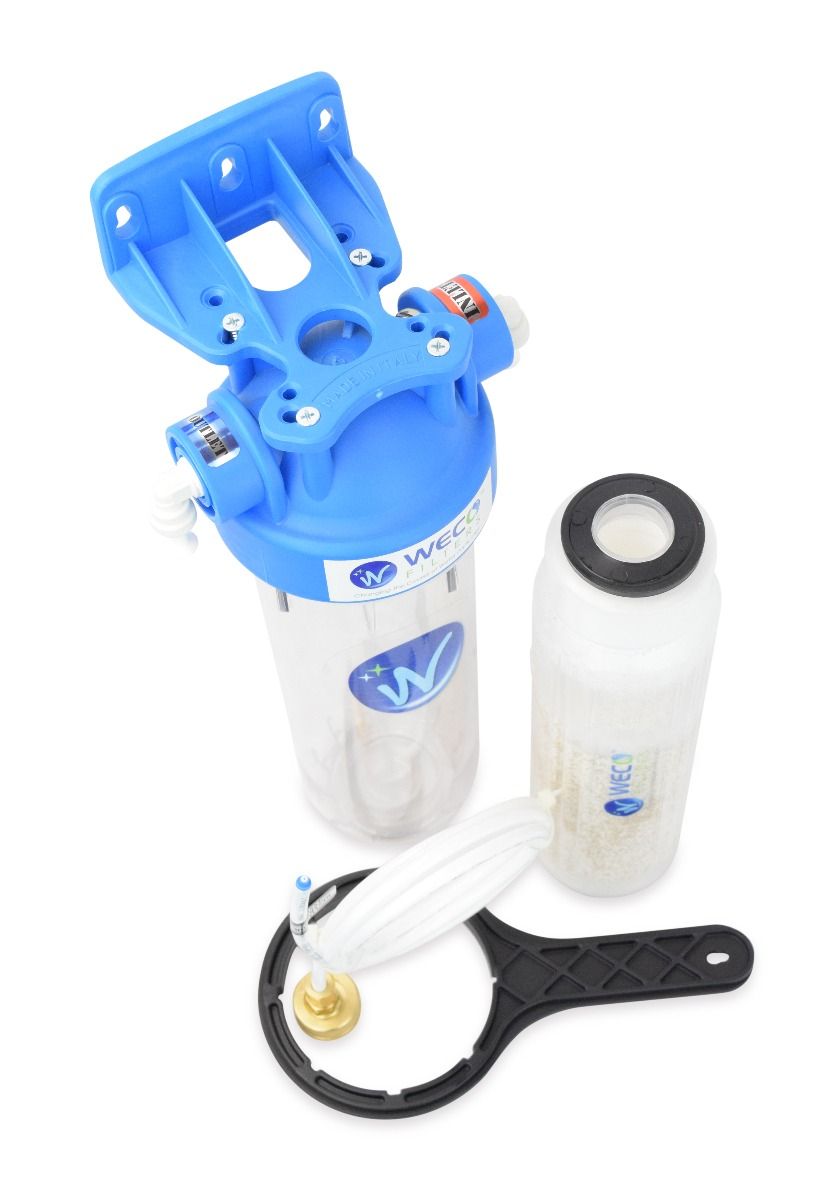

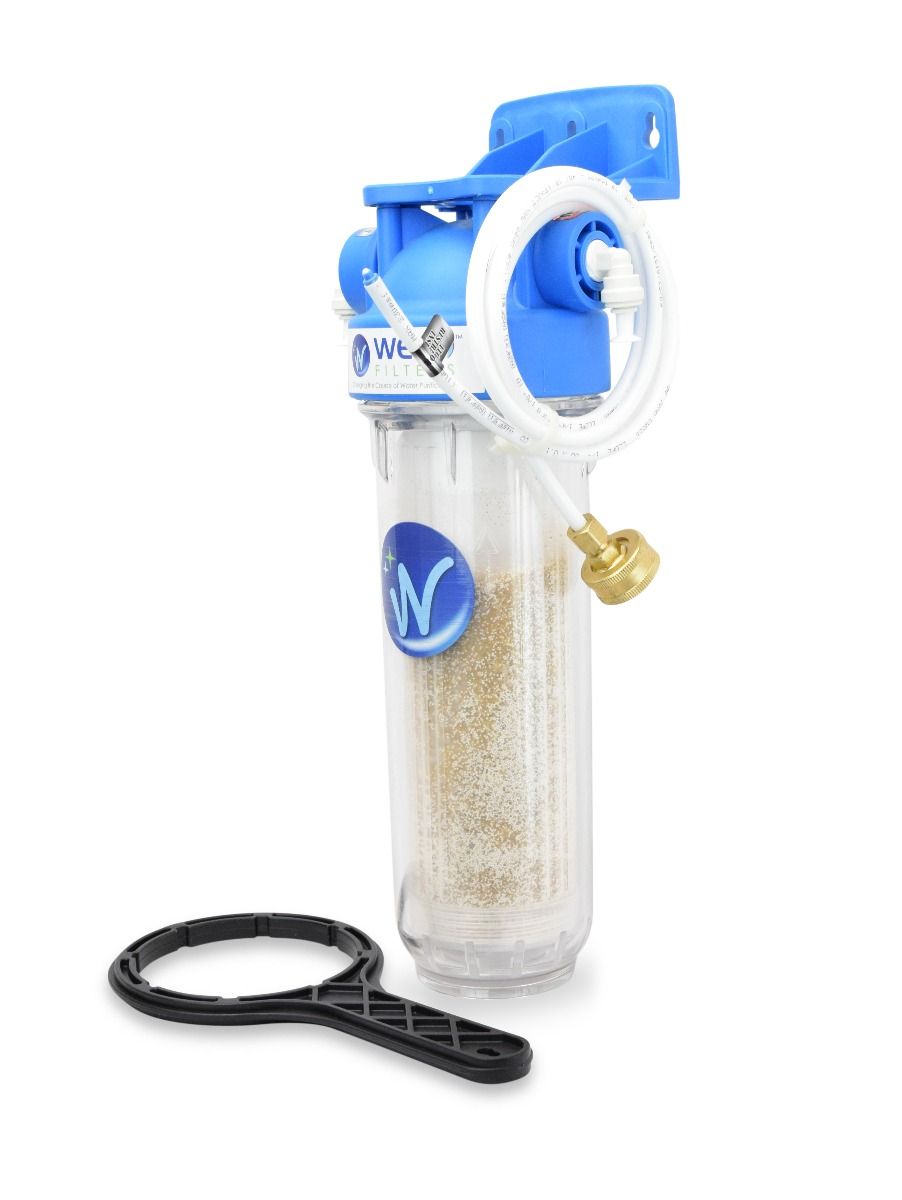

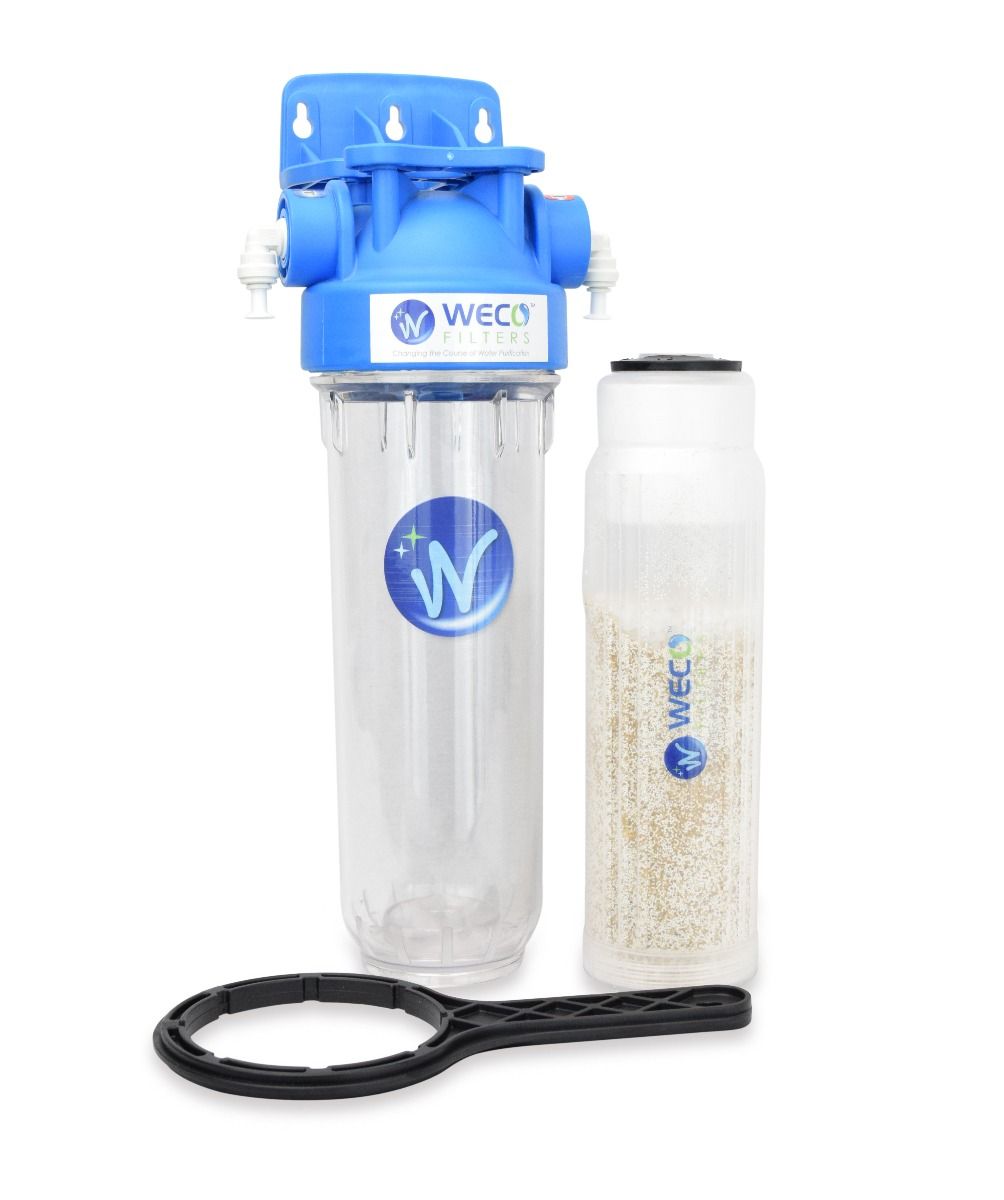

  • Atlas L to R 1 stage filter system with pressure relief and housing wrench.

WECO ECMX-1025-KT EcoMix Media Softener Pilot Test Kit

There are distinct advantages to running trials of small scale equipment to collect data and document the performance of media proposed for full scale implementation. Water temperature, pH, contaminant concentrations, changing seasons, production variables can affect the water treatment process. Surface water and even ground water sources nearly always exhibit significant variability and are difficult to model, making data from a pilot test critical.

WECO Filters pilot test kits are available in nearly limitless number of configurations. Filters come standard in clear color.

Operational Parameters

Media Parameters

  • Ecomix-C comes in 25 liter bags (.88 ft3). Sys-tem sized by the bag. 12 liter bags available
  • Use non chemically treated salt only, iron cleaning salt will reduce system life
  • Continuous Flow Rate: 10 GPM
  • Regeneration override in control valve should be set to 4 days in softener applications

Advantages

  • Broad operating range for high iron reduction
  • Mixture of natural and synthetic ion exchange adsorptive medias reduce equipment costs
  • Effective hardness, iron, manganese and tannin reduction
  • Reduces organic color due to tannins without the risk of odor common with other tannin reduction medias
  • Not affected by Hydrogen Sulfide and may slightly reduce the rotten egg smell
  • Low attrition loss for long bed life
  • Resistant to chlorine, up to 1 ppm
  • No amine smell

Pre-treatment

  • Max. Hardness 44 GPG
  • Max. Iron 15 ppm
  • Max. Tannins 5 ppm (TOC 17 ppm)
  • Max. TDS 4000 ppm
  • Resistant to chlorine, up to 1 ppm
  • pH 5.0-9.0
  • Service Flow 8-10 GPM/ft2

Certifications

  • NSF/ANSI Standard 44 Residential Cation Exchange Water Softeners
  • NSF/ANSI Standard 61 Drinking Water System Components - Health Effects
  • NSF/ANSI Standard 372 Drinking Water System Components –Lead Content
EcoMix Advanced Softening Media

Specifications

Model Maximum Service Flow (gpm) Cartridge Size (inches)
ECMX-1025-KT 0.2 2.5 x 10
More Information
UPC 648620100726
