WECO UVX320 Whole House Four Stage UV Water Filtration System

SKU

UVX320

Rating:

100 % of 100

5 Reviews Add Your Review

Price: $1,454.06

Parts In stock

Quantity - +

Whole House Water Filter safeguards you, your family and pets from harmful chlorine disinfectants, industrial leaks, hydrogen sulfide gases and particulate matter that contaminate well and municipal water supplies.
Prevents sediment clogging of washing machines, backwashing filters, water softeners and other appliances in residential and food service applications.
Eliminates taste and odor problems caused by chlorine and chlorine dioxide water treatment chemicals.
Provides refreshing purified water at all faucets, refrigerators and beverage dispensers.
Recommended for residential and light commercial applications.
Fast flow rates with 1” FNPT inlet and 1" MPT outlet.
High output UV unit with a countdown timer and audible alarm ensures timely lamp replacement.

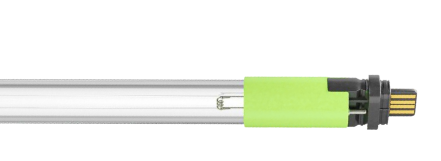

Replace UVX-RL-420 lamp every 9000 hours or 12 months.
Power: 100-240V 50-60Hz 35W North American Plug.
Wrench and filter cartridges included.

Details

WECO UVX320 WHOLE HOUSE FOUR STAGE UV WATER FILTRATION SYSTEM

Point of entry activated carbon and UV ray disinfection water treatment system suitable for whole house residential and light commercial applications. Fast flow rates with 1" ports. Comes with US made 5 micron carbon filters. Also compatible with a wide range of big blue 20" sediment, carbon and multimedia cartridges.

UV Ray Disinfection Unit

Outlets for 1" MPT
9 GPM rated UV module deactivates microorganisms like bacteria, viruses, parasites, cryptosporidium and giardia.

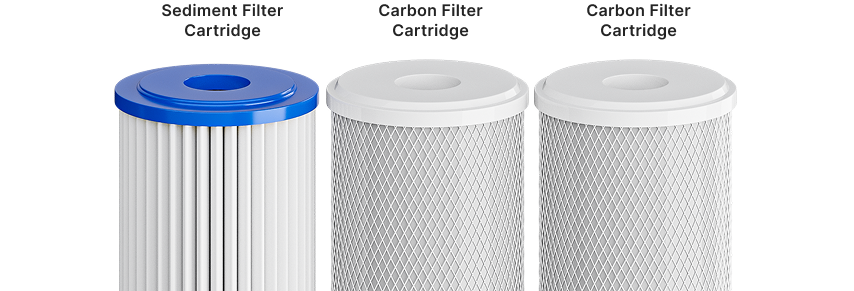

20" Big Blue Sump

US made 5 micron carbon block included.
Filters sediment, chlorine, bad tastes and odors.
Provides refreshing purified water at all faucets, refrigerators and beverage dispensers.

Pre-Treatment Requirements

Iron < 0.3 ppm (0.3 mg/L)
Hardness < 7 gpg (120 mg/L)
Turbidity < 1 NTU
Manganese < 0.05 ppm (0.05 mg/L)
Turbidity < 1 NTU
Tannins < 0.1 ppm (0.1 mg/L)

Advantages

Simple in/out installation. No drain required.
No waste water.
Small footprint allows installation just about anywhere - house mains, kitchen, RV.
Low operational costs.

Operating Limits

Operating Pressure 15-90 PSI
Operating Temperature 36-104 °F
Power Supply 100-240 V/ 50/60 Hz

Specifications

Models	Stage 1	Stage 2	Stage 3	Stage 4	Voltage	Max. Current	Dimensions (W x D x H)
UVX120	ACB-4520-5	UVX-RL-420	-	-	100-240 V/ 50/60 Hz	1.5 Amp	15 x 6 x 25
UVX210	5MPLWCT4510	ACB-4510-5	UVX-RL-420 Bulb	-	100-240 V/ 50/60 Hz	1.5 Amp	18 x 6 x 15
UVX320	5MPLWCT4520	ACB-4520-5	ACB-4520-5	UVX-RL-420 Bulb	100-240 V/ 50/60 Hz	1.5 Amp	20 x 6 x 25
