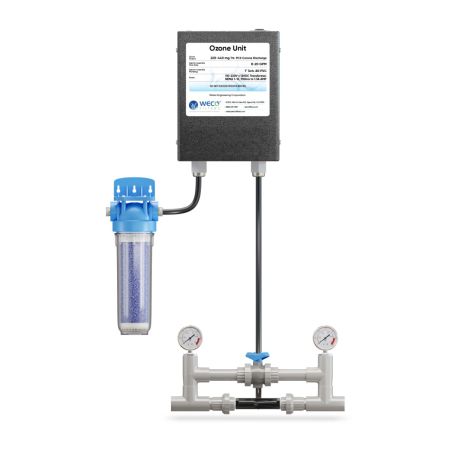

O3Pro Injector 2000: Ozone Water Conditioning System for Iron, Manganese, Hydrogen Sulfide Treatment in 5-20 GPM Flow Rates & 1-Inch Pipes, Ideal for 40/60 PSI Well Systems
- Designed for seasoned well drillers, skilled plumbers, and qualified electricians exclusively, given the intricate installation process of the ozone unit. It involves a controlled 110VAC switched outlet, activating and deactivating with water flow. An optional flow switch-controlled kit is also offered.
- This system can effectively treat contaminant levels of approximately 10 parts per million (PPM) of iron, 1 PPM of manganese, and 5 PPM of hydrogen sulfide (H2S).
- PCS Corona Discharge Ozone Output: 220-440 mg/hr (High & Low settings).
- Color changing desiccant filter; Blue (Dry) to Yellow (Wet).
- Engineered to be compatible with the majority of conventional well systems, whether equipped with a pressure tank or an atmospheric tank. However, it is important to note that this design is not intended for use with VFD (Variable Frequency Drive) or CSV (Cycle Stop Valves) systems.
- Power: 110-220V x 12VDC Transformer, 700ma to 1.3A AMP.
- Included system components include the injector assembly, ozone generator, tube kit, dessicant filter & pressure relief valve.
Tackle Common Well Water Issues with Effective Contaminant Removal
Do you struggle with unpleasant odors, staining, or rusty water from your well? This innovative water treatment system is designed to address these problems head-on, providing clean, clear water for your entire home.
Installation Ozone Generator with Pressurized Well Tank
Standard 40/60 well system setup illustrated below. Following the ozone unit, water flows into a contact tank and a pressurized well storage tank, before undergoing filtration via a backwash filter system. The treated water is then directed for distribution.
Installation of Ozone Generator with Atmospheric Tank
Install the Mazzei Injector Assembly before the atmospheric tank as per the diagram. Use the ball valve to divert water flow through the injector, maintaining a 10-20 PSI differential during tank filling. If pressure exceeds 100 PSI, cease operations and seek assistance from customer support. Install a pressure relief valve to prevent plumbing and component over-pressurization.
Effective Contaminant Removal for a Refreshing Difference
This system boasts powerful filtration capabilities, effectively removing up to 10 parts per million (ppm) of iron, 1 ppm of manganese, and 5 ppm of hydrogen sulfide (H2S) from your well water. Iron and manganese can cause staining on fixtures and laundry, while hydrogen sulfide is responsible for the unpleasant rotten egg odor commonly associated with well water. By eliminating these contaminants, you'll experience a noticeable improvement in the quality, taste, and clarity of your water.
Targeted Treatment with Adjustable Ozone Production
This system utilizes a powerful Corona Discharge (PCS) technology to generate ozone, a natural disinfectant known for its ability to oxidize and remove contaminants. The system offers adjustable ozone production, with a range of 220-440 milligrams per hour (mg/hr). This allows you to customize the treatment level based on the severity of your water quality issues. The higher setting can be used for initial intensive treatment, while the lower setting is ideal for ongoing maintenance.
Simple Monitoring for Hassle-Free Maintenance
Maintaining your water treatment system is easy with the integrated color-changing desiccant filter. This filter removes moisture from the air, which is crucial for optimal ozone production. The filter conveniently changes color from blue (dry) to yellow (wet) to indicate when replacement is necessary. This visual cue eliminates guesswork and ensures your system is always operating at peak performance.
Broad Compatibility for Seamless Integration
This system is designed for seamless integration with most conventional well systems. It is compatible with both pressure tank and atmospheric tank setups, offering a versatile solution for a wide range of well configurations. However, it's important to note that the system is not suitable for use with Variable Frequency Drive (VFD) or Cycle Stop Valve (CSV) systems.
Flexible Power Source for Convenient Installation
This water treatment system offers a flexible power source, operating on a standard 110-220V AC power supply with a 12VDC transformer. The transformer provides the necessary power with a current draw ranging from 700mA to 1.3A, ensuring efficient operation without overloading your electrical system.
Invest in Clean, Clear Water for Your Home
By investing in this water treatment system, you'll be taking a significant step towards improving the quality of water in your home. With its effective contaminant removal, adjustable ozone production, user-friendly monitoring system, and broad compatibility, this system provides a comprehensive solution for addressing common well water challenges. Enjoy the benefits of clean, clear, and odor-free water for your entire family.
