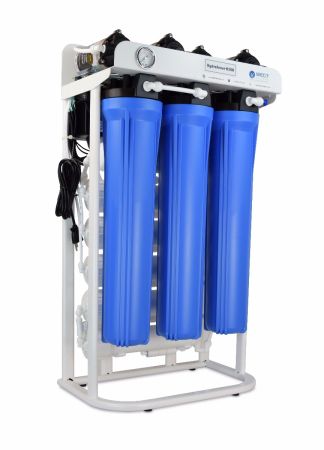

WECO HydroSense-0500DI Light Commercial Reverse Osmosis Water Filter System

SKU
HydroSense-0500DI
Rating:
100 % of 100
2  Reviews Add Your Review
Price: $1,417.41
Free Shipping
Parts In stock
- +
  • Reverse osmosis drinking water purification system for residential and light commercial applications.
  • Sediment and compressed carbon block pre-filtration removes tiny particles like rust, silt, taste and odor-causing chemicals like chlorine, chloramine and rotten-egg odors.
  • Standard 1812 Volume Thin Film Composite reverse osmosis membrans removes up to 98.5% of water contaminants like nitrate, TDS, fluoride, lead, sodium and mercury.
  • Automated water pressure sensors and booster pumps keep system functioning at maximum capacity produces 500 gallons per day.
  • Ideal for residential use, medical offices, laboratories, schools, aquariums and hydroponic growing operations.
  • Please note this is not a complete whole house reverse osmosis system. Atmospheric tanks, jet pumps and other equipment need to be purchased separately for whole house applications. Read our whole house RO blog and/or contact us for more information before purchasing.

WECO HydroSense-0500 Light Commercial Reverse Osmosis Water Filter System

High Contaminant Rejection

Added electric booster pump increases the RO production rate, boosts the pressure tank storage volume, rejects more contaminants and increases faucet flow rate even if the reverse osmosis membrane pressure rating is met by the water supply.

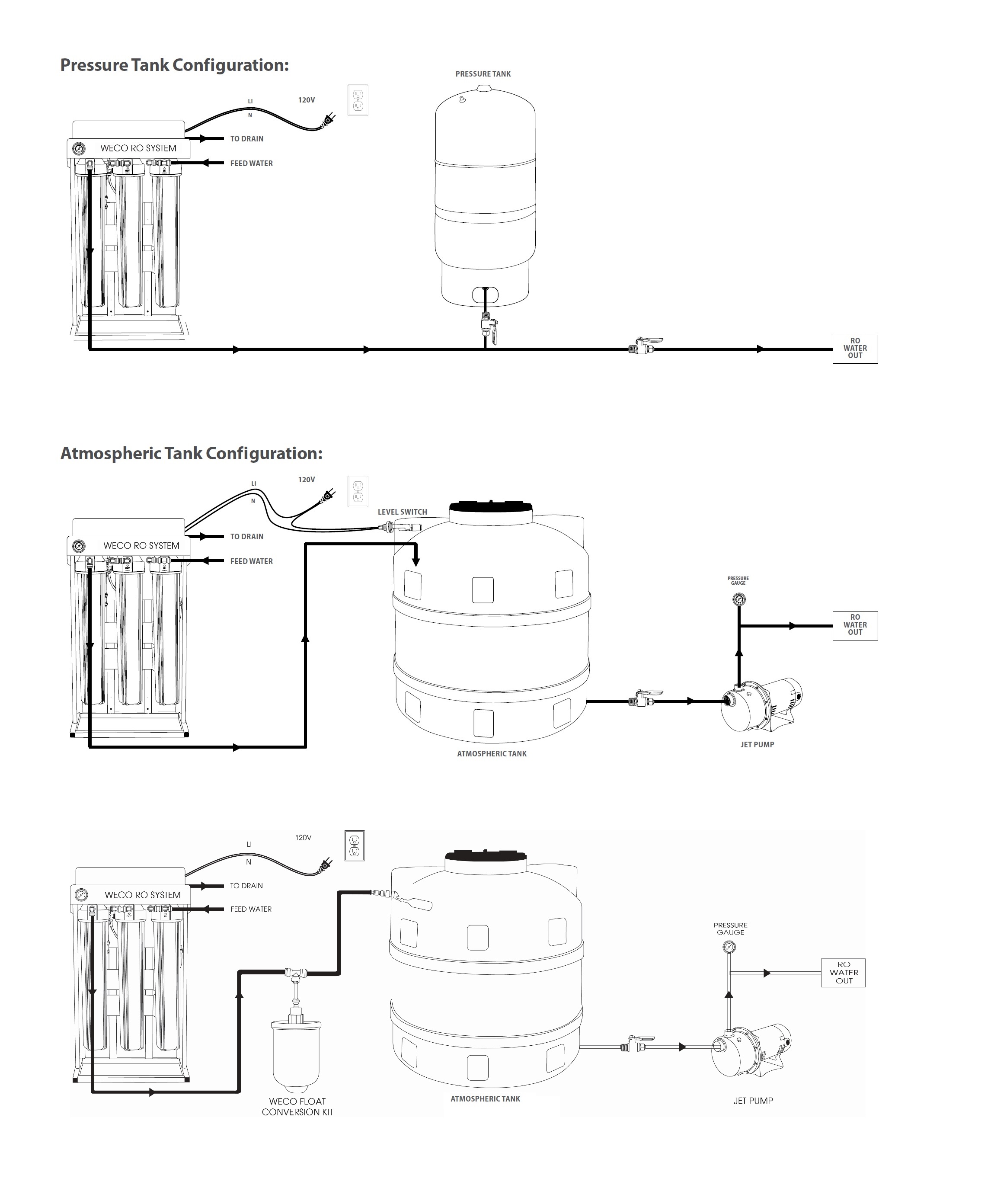

Pair with ROT Tanks for Higher Flow(not included)

T-in pressurized water storage tanks for higher flow of drinking water. Larger tanks allow longer times of high flow. Pair with WECO ROT series tanks for automated pump control.

Whole house flow rates available only with addition of larger atmospheric tanks paired with delivery pumps. May require significant space, post treatment and upkeep. Plumbing and engineering help may be needed.

Crystal Clear, Purified Drinking Water

Multiple stages of filtration remove any traces of tastes, odors, or gasses, providing crystal clear, fresh-tasting drinking water.

Description

WECO HydroSense commercial reverse osmosis filter uses four stages of water filtration to create pure drinking water, ideal for residential use, medical offices, laboratories, schools, aquariums and hydroponic growing operations.

The process starts by removing tiny particles like rust, silt, and insect parts. This protects your family and prevents the filtration systems from clogging. Next, the water flows through two 5-micron activated carbon block cartridges. These compressed carbon block filters remove taste and odor-causing chemicals like chlorine, chloramine and rotten-egg odors. Chlorine disinfection process can create cancer-causing byproducts in the water. These carcinogens, called THMs, are removed by the carbon filters. The carbon cartridges also remove organic contaminants like herbicides, insecticides and industrial chemicals that seep into groundwater.

The next step involves the reverse osmosis (RO) process. Here water is “squeezed” through a special membrane. Heavy metals, like lead and mercury, are removed while purified water passes through. The RO process also removes salts, fluoride, radon, and benzene. The HydroSense makes refreshing water the whole family will enjoy. Automatic electric booster pumps with pressure sensors keep the system operating in optimal condition.

Hydrosense filtration system is pre-assembled can be installed with simple hand tools. We recommend installation by a licensed plumber to ensure adherence to all local codes. Routine replacement of the filter cartridges is recommended to maintain filter performance.

Applications

Commercial/Industrial drinking water purification
Hydroponic plant growing operations, Greenhouses
Large Aquariums
Breweries
Nursing homes, Health facilities
Laboratories (Hydrosense DI Models)
Ideal for anyone health-conscious and concerned about drinking water quality

Filter Cartridges

5-micron polypropylene pre-filter removes sediment, rust and other microscopic debris

5-micron solid activated carbon block cartridge remove chlorine, Chloramine, bad tastes and odors, pesticides and carcinogenic impurities

0.5-micron carbon block filter remove chlorine, chloramine, bad tastes and odors, pesticides and carcinogenic impurities

5X Membranes

TFC reverse osmosis membranes removes up to 99% of water contaminants like lead, nitrate, fluoride and mercury, even in high TDS water

Coconut shell carbon polishing filter enhances water taste and eliminates odors.

HydroSense-0500 Reverse Osmosis Water Filtration System

Contaminants Removed TDS is parts per million (PPM)

  • Sediment Filter - Up to 99% sediment and particulates (5 microns and higher)
  • Carbon Filter - Up to 99% of chlorine, radon and volatile organic compounds
  • Thin Film Composite Membrane

Specifications & Operating Limits

Max. Filtered Water Flow (gpm) 0.34 gpm (500 GPD) @ 550 ppm TDS, 77 °F
Max. Hardness 10 Grains @ 6.9 pH
Max. TDS (ppm) 2000
Automatic Shut-Off Yes
Filter Life 6 Months or 20,00 gallons for pre-filters
(municipal water)
24 Months for membrane (municipal water)
Feed Water pH Limits 4-10
Feed Water Pressure (psi) 40 Min - 125 Max.
Feed Water Temperature 40-100 °F
Fittings 3/8" - Push to Connect
Plumbing Connections 1/2" Water Supply Adapter
Water Inlet Valve 3/8" Ball Valve
Capacity
Filtered Water Output 500 gal/day
Pre/Post Filter Life 20,000 Gallons
Appearance
Color Appearance White
Filter Housing Blue Slimline (2.5"D x 20"H)
Installation 1/2" Water Supply Adapter Included
Unit Color White
System Mounting Orientation Floor Standing
Weights & Dimensions
Overall Depth 12.0 in
Overall Height 34.0 in
Overall Width 15.0 in
Approximate Shipping Weight 80.0 lb
Net Weight 80.0 lb
Accessories
Icemaker Connection Kit IM25EZ (Available at Additional Cost)
Installation Kit Included
Replacement Pre-Filters AQUA-TITAN-SET3
Replacement Membrane TW-2012-100-5PK
Warranty
Parts Warranty Limited 1-year
Power/Ratings
110 V -
Filter
App Filter - Product Type Filtration Reverse Osmosis

Professional Plumbing Support Recommended for Installation

Water pressure can cause leaks and damage the surrounding building or fixtures if not properly installed. User must check all fittings for tightness. WECO assumes no responsibility for water damage due to leaks.

Filtering Well Water?

Prior to placing an order, provide us with a comprehensive water quality analysis of your private well for a customized solution.

Alternatively, choose our basic well water test kit, and we will conduct the test on your behalf
