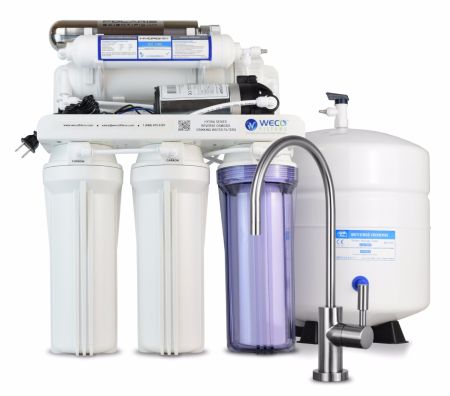

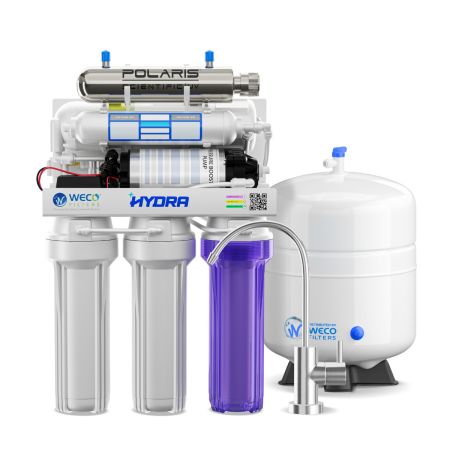

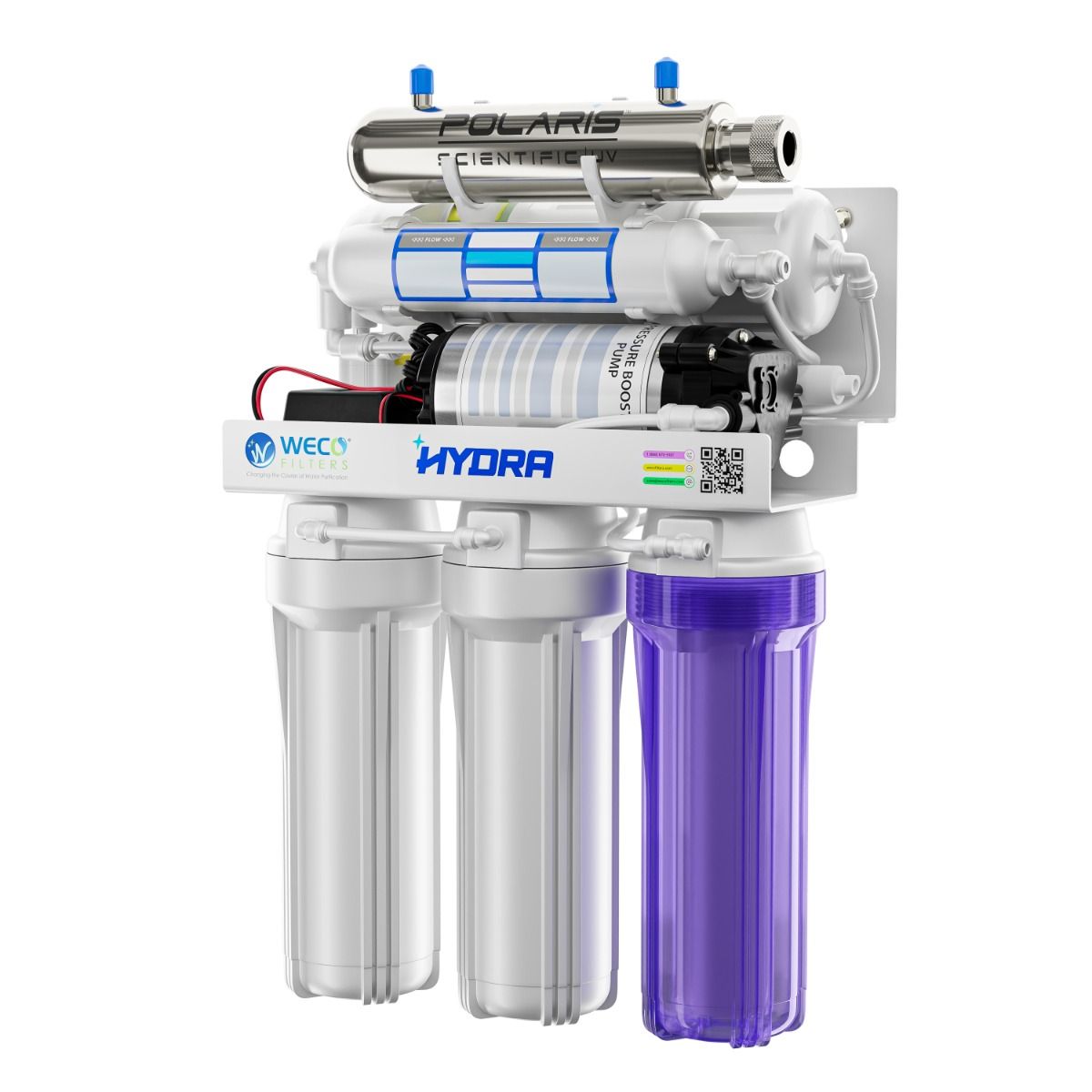

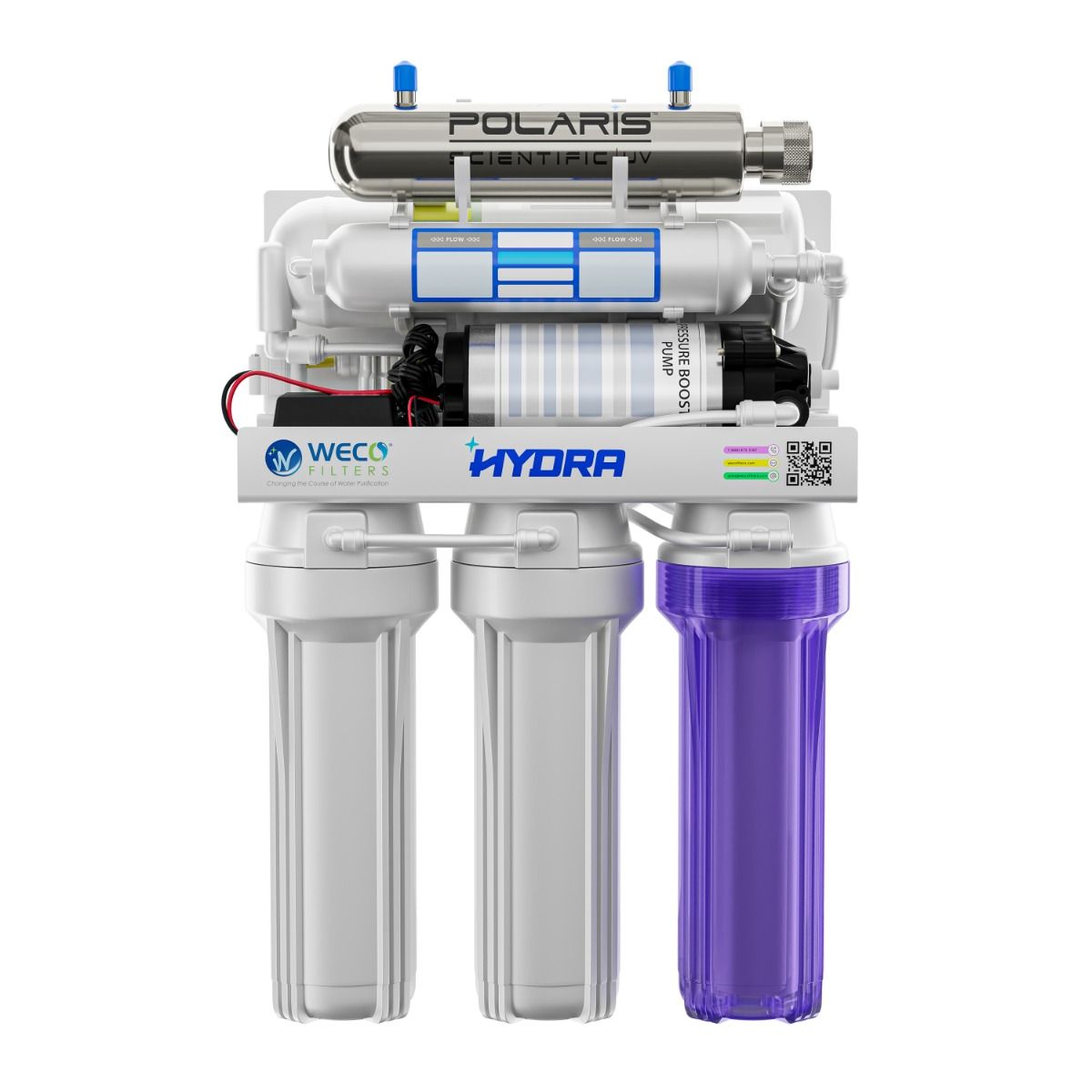

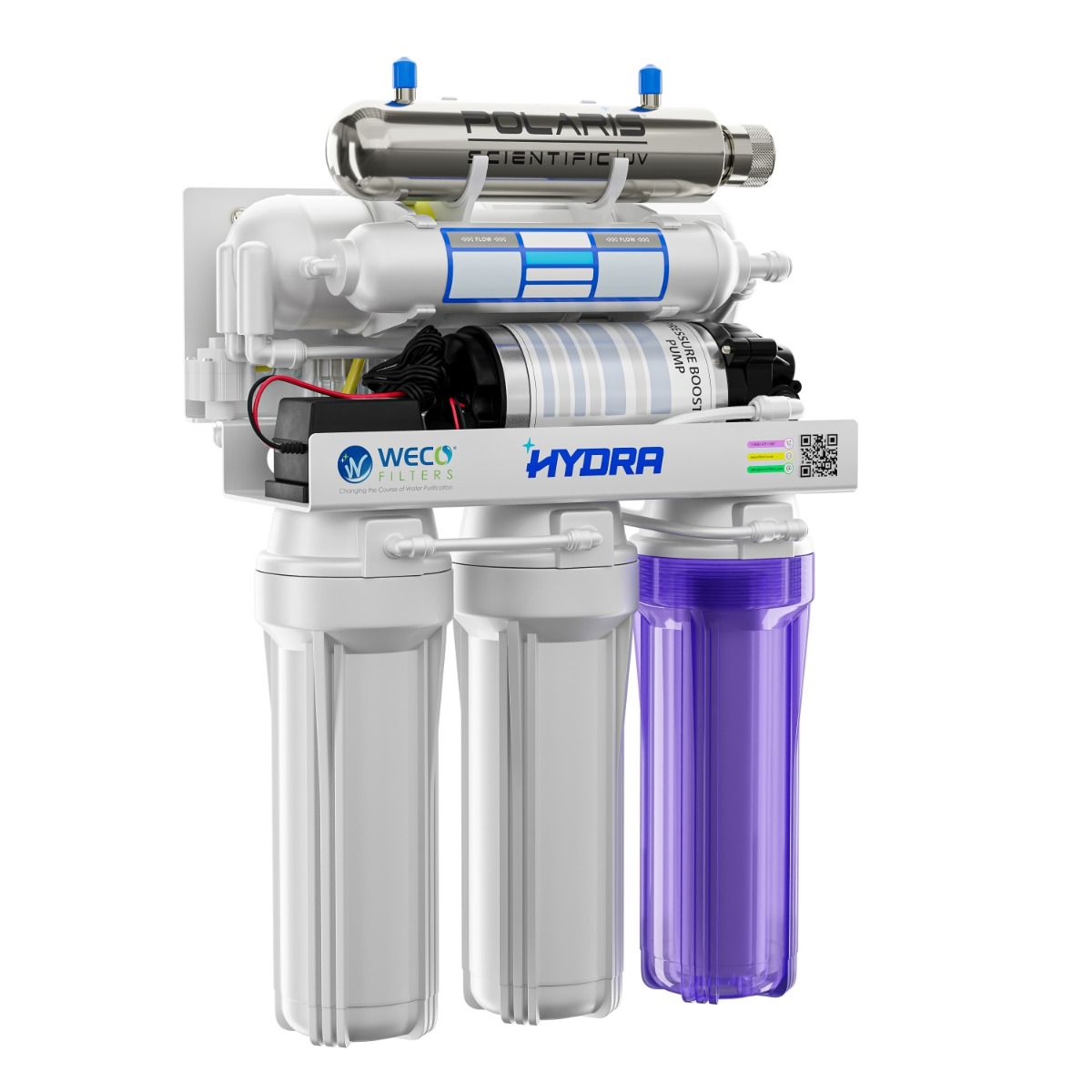

WECO HYDRA-75UVPMP Reverse Osmosis Drinking Water Filtration System with UV Disinfection Unit and Booster Pump
- 5-micron sediment polypropylene pre-filter removes sediment, rust and other microscopic debris.
- 5-micron solid activated carbon block cartridge and 0.5 micron carbon block filter remove chlorine, chloramine, bad tastes and odors, pesticides and carcinogenic impurities.
- Hydron TFC reverse osmosis membrane removes up to 99% of water contaminants like lead, nitrate, fluoride and mercury, even in high TDS water.
- NSF-certified lead-free faucet.
- Granular activated in-line post-filter polishes the water to crystal clear perfection.
- UV ray disinfection lamp deactivates microorganisms like bacteria, viruses, parasites, cryptosporidium and giardia.

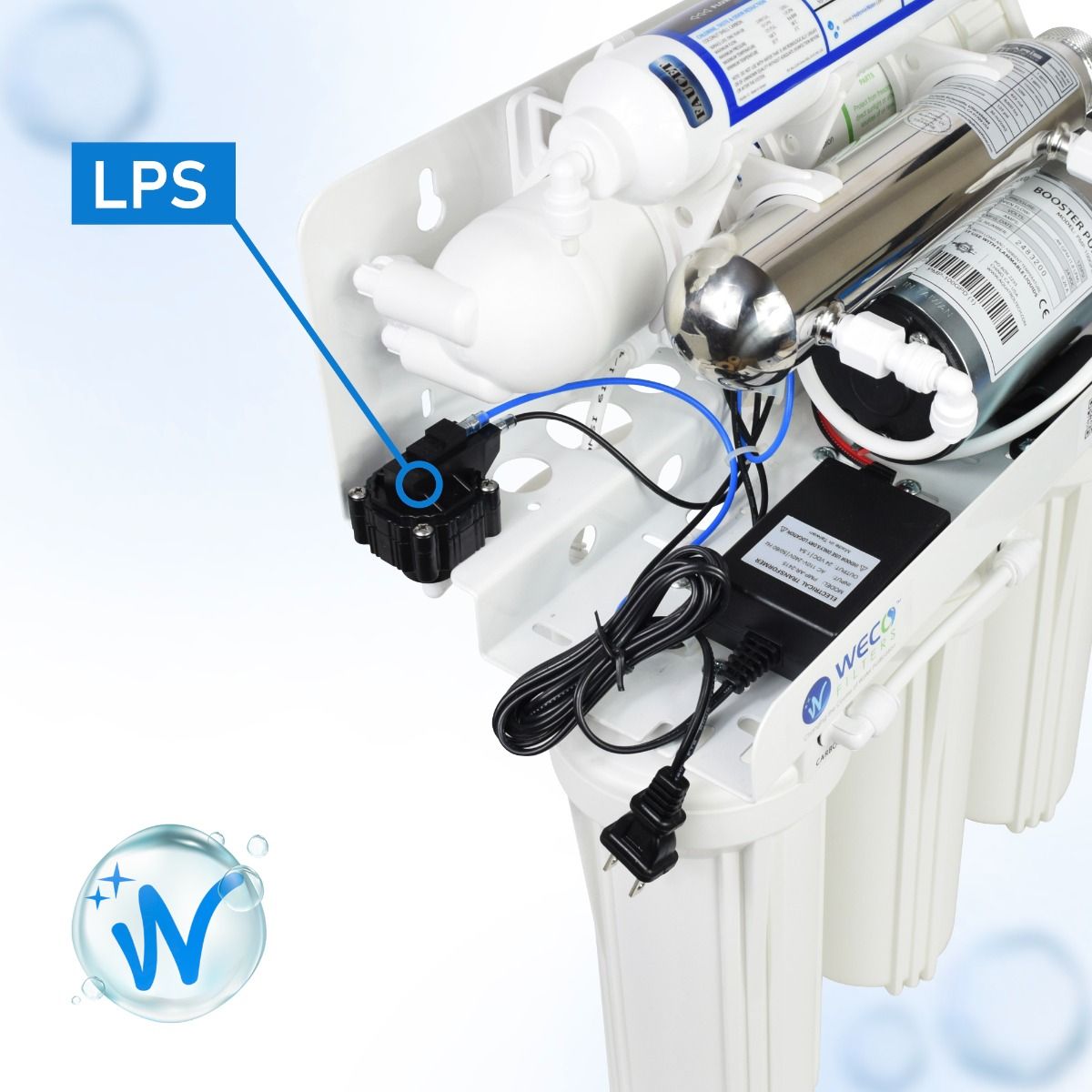

- Booster pump equipped with pressure sensors for for high TDS and/or low water pressure city and well water homes.
- Constructed with FDA and NSF certified materials.
- Easy to install kit includes water storage tank and pure water dispensing faucet.
- Assembled and tested in the USA.
Polaris Scientific Ultraviolet systems
Compact and efficient, Polaris Scientific UV systems provide reliable low- to medium-flow water treatment with minimal temperature change.
Coconut Shell Carbon Post filter
Polished by Nature, perfect for You
Hydron Performance Membrane
Reliable, precise and advanced membrane element that delivers an attractive cost to benefit ratio while giving you consistent high quality and performance.
External quick connect flow restrictor sized to the membrane average permeate flow.
Crystal Clear, Purified Drinking Water
Multiple stages of filtration remove any traces of tastes, odors, or gasses, providing crystal clear, fresh-tasting drinking water.
Ideal for:
The WECO Hydra reverse osmosis system delivers clean, fresh-tasting water for homes, offices, gyms, juice bars, and coffee shops. It uses multiple filtration stages:
- Sediment pre-filter (5 micron): Removes rust, silt, sand, and particles, with a clear housing to show when replacement is needed.
- Carbon block filters: Remove chlorine, chloramine, odors, hydrogen sulfide, herbicides, pesticides, and industrial chemicals.
- Reverse osmosis membrane (NSF-certified): Eliminates heavy metals, salts, nitrates, fluoride, benzene, and more, with reduced wastewater (4:1 ratio).
- Post carbon filter: Polishes water for a crisp, clean taste.
The system includes a 3-gallon storage tank and a lead-free designer faucet for purified water, while your main faucet continues to supply unfiltered water.
Benefits:
- Improves taste of drinks and food
- Eco-friendly and efficient
- Easy to install (professional installation recommended)
- Filter cartridges are easily replaceable
The WECO Hydra ensures safe, great-tasting water for your family, pets, and daily use.
Filter Cartridges
[5-micron] Hydronix SDC-25-1005 polypropylene pre-filter removes sediment, rust and other microscopic debris
[5-micron] Hydronix CB-25-1005 solid activated carbon block cartridge remove chlorine, Chloramine, bad tastes and odors, pesticides and carcinogenic impurities
[5-micron] Hydronix SMCB-2510 carbon block filter remove chlorine, chloramine, bad tastes and odors, pesticides and carcinogenic impurities
Hydronix TFC reverse osmosis membrane removes up to 99% of water contaminants like lead, nitrate, fluoride and mercury, even in high TDS water
[5-micron] Hydronix SMCB-2510 carbon block filter remove chlorine, chloramine, bad tastes and odors, pesticides and carcinogenic impurities
Installation
Connect cold water line to RO feed port using supplied adapter.
Install RO faucet (either by drilling or using triple faucet).
Install drain saddle into drain pipe.
Install storage tank for purified water.

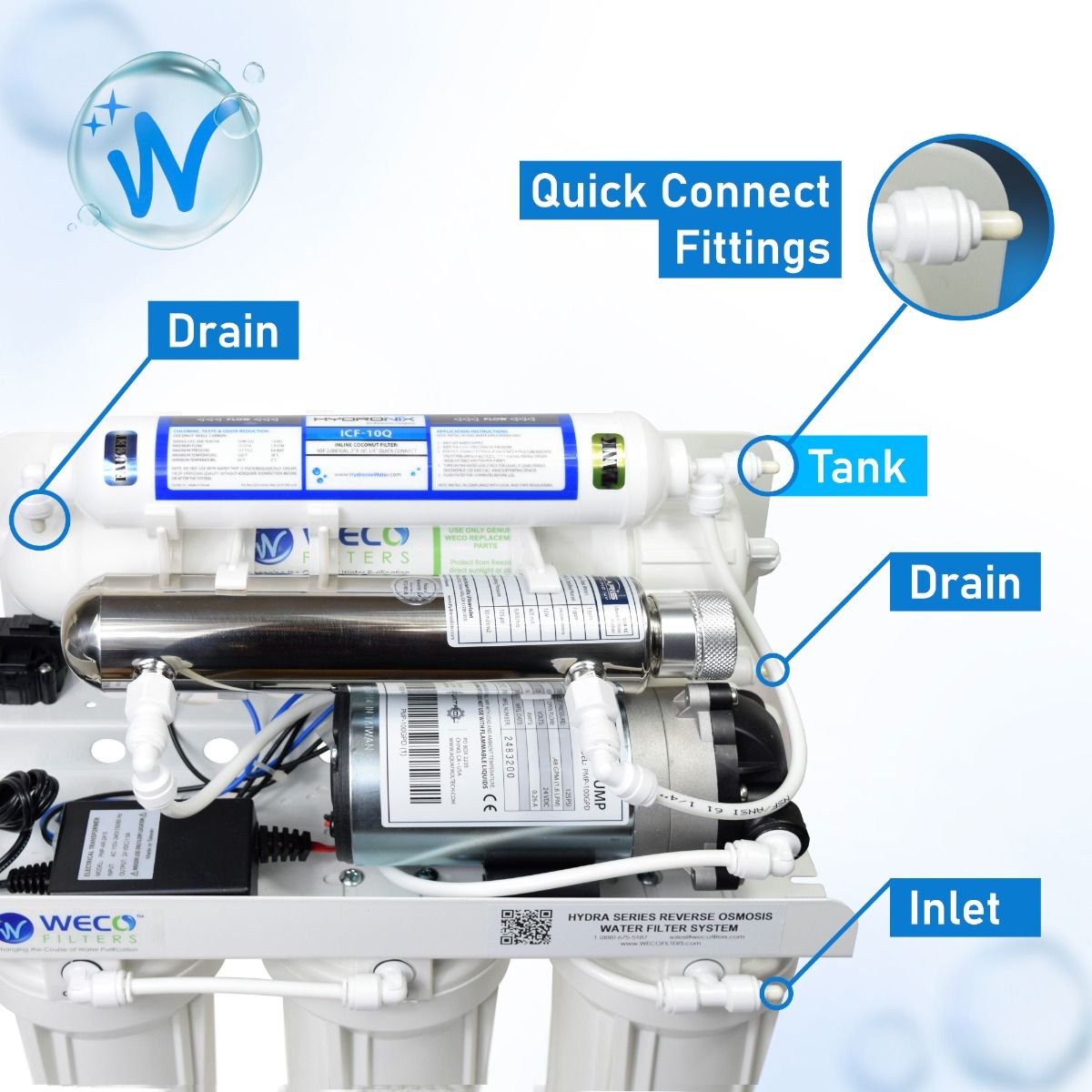

Use the color coded tubing to make the following connections:
- The WHITE tubing connects the water supply adapter to the inlet side.
- The BLUE tubing connects the faucet to the outlet side.
- The BLACK tubing connects to the drain clamps.
- The YELLOW tubing connects the storage tank to the inlet side of the postcarbon.
The WECO Hydra reverse osmosis system delivers pure, great-tasting water for homes, offices, gyms, juice bars, and coffee shops. Its multi-stage filtration ensures clean drinking water, and the standard membrane housing allows compatibility with any residential RO membrane. Note: changing membrane capacity requires adjusting the flow restrictor.

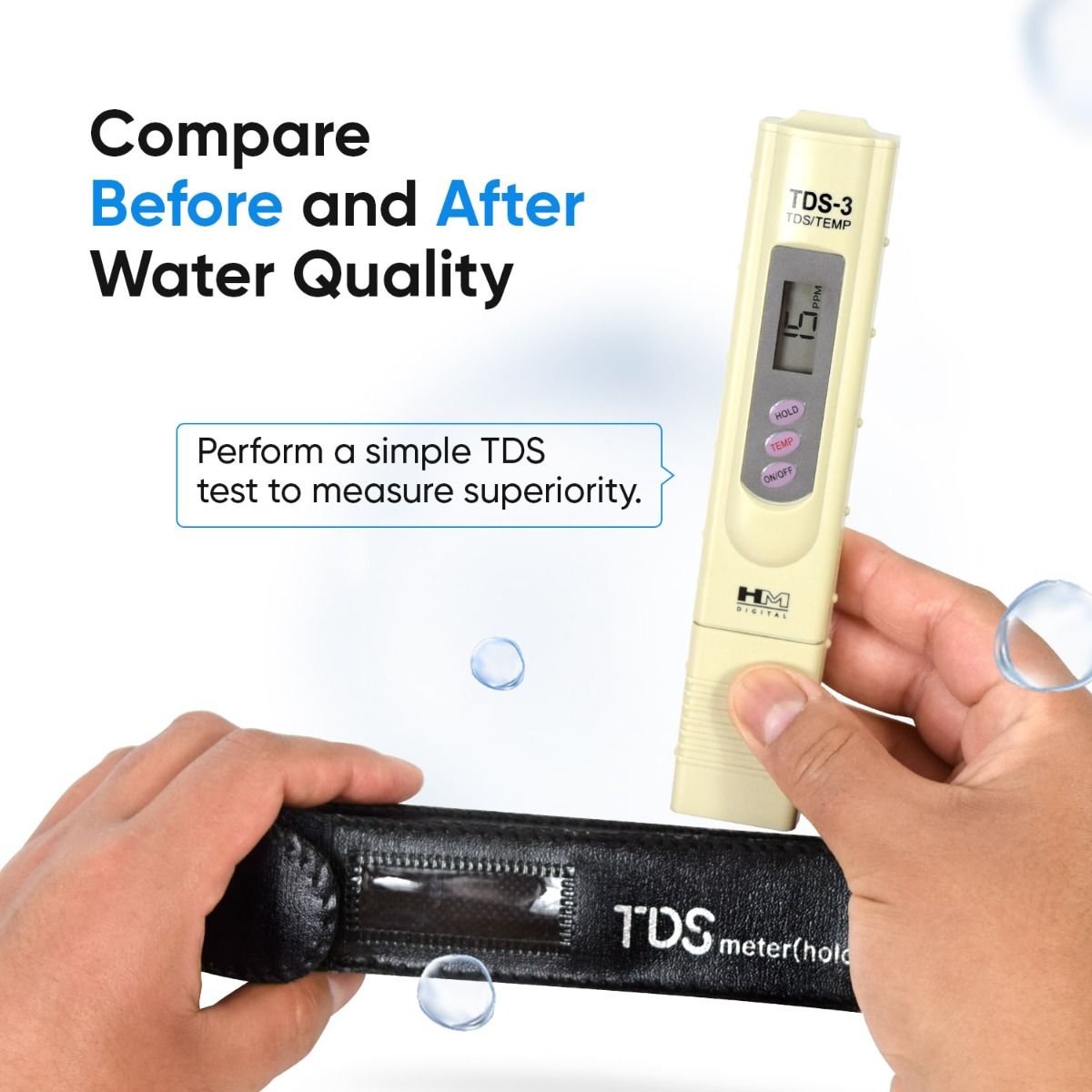

Test & Compare Total Dissolved Solids Reduction with Tap Water & Bottled Water
One of the most useful functions of a TDS meter is the ability to check on the status of your unit.
Hydra lower the TDS by removing the minerals, salts, and contaminants, increasing the water purity.
The numbers don't lie, and a TDS meter shows just how powerful the VGRO filter truly is.
"TDS" stands for Total Dissolved Solids, which is a general measure of the amount of substances dissolved in lakes, streams and tap water. These “dissolved solids” include mostly inorganic salts like sodium, calcium, magnesium, potassium cations and chloride, bicarbonate, carbonate, phosphate, sulfate, and nitrate anions.
When water percolates through underground rock formations and soil, some of the natural minerals dissolve into the water. Depending on the amount and type of minerals in the rock and soil, the groundwater could have very high or very low mineral content, or somewhere in between. Further, water treatment facilities sometimes add chemicals to prevent the water from being acidic or corrosive.
The more substances dissolved in the water, the higher the TDS. This matters because the higher the TDS, the lower the purity of the water.
Total Dissolved Solids (TDS) Reduction Chart
Available Pressurized Storage Tanks
Tank Specifications
| Models | Total Capacity | ≈ Usable Capacity | Diameter (in) | Height (in) | Connector Size | Color | ||
|---|---|---|---|---|---|---|---|---|
| Gal | Liter | Gal | Liter | |||||
ROT-1-W |
1 | 3.8 | 0.6 | 2.3 | 6 | 9 | ¼" MNPT | White |
ROT-2-W |
2 | 7.6 | 1.2 | 4.5 | 6 | 12 | ¼" MNPT | White |
ROT-3-W |
3 | 11.4 | 1.8 | 6.8 | 9 | 16 | ¼" MNPT | White |
ROT-4-W |
4.5 | 17 | 2.8 | 10.6 | 11 | 16 | ¼" MNPT | White |
ROT-6-W |
6 | 22.7 | 3.6 | 13.6 | 12 | 17 | ¼" MNPT | White |
ROT-10-W |
10 | 37.9 | 6 | 22.7 | 12 | 22 | ¼" MNPT | White |
ROT-14-W |
14 | 52.9 | 8.4 | 31.7 | 16 | 25 | ¼" MNPT | White |
ROT-14-B34 |
14 | 52.9 | 8.4 | 31.7 | 16 | 25 | ¾ " MNPT | Blue |
ROT-20-B34 |
20 | 80 | 14 | 53 | 16 | 31 | ¾" MNPT | Blue |
Specifications & Operating Limits
| Max. Filtered Water Flow | 0.75 GPM |
| Max. Hardness | 10 Grains @ 6.9 pH |
| Max. TDS (ppm) | 2000 |
| Automatic Shut-Off | Yes |
| Automatic Shut-Off (Filter Life) | 3 Months or 450 gallons for pre-filters 12 Months or 1500 gallons for post filter 24 Months for membrane |
| Feed Water pH Limits | 4-10 |
| Feed Water Pressure (psi) | 40 Min - 125 Max. |
| Feed Water Temperature | 40-100 °F |
| Fittings | 1/4" - Push to Connect |
| Plumbing Connections | 1/4" Inlet / 1/4" Outlet |
| Water Inlet Valve | 1/2" & 3/8" NPT ball valve adaptor |
| Capacity | |
|---|---|
| Filtered Water Output | 50 gal/day |
| Storage Tank Capacity (gals.) | 3.2* (*Theoretical tank capacity. When tested according to NSF/ANSI 58 at 50 PSIG inlet pressure, tank capacity is 2.3 gallons) |
| Pre/Post Filter Life | 900 Gallons |
| Appearance | |
|---|---|
| Color Appearance | White |
| Faucet Color | Brushed Nickel |
| Filter Housing | White/Clear |
| Installation | Undercounter Kit Included |
| Unit Color | White |
| System Mounting Orientation | Floor Standing or Wall Mount |
| Weights & Dimensions | |
|---|---|
| Overall Depth | 5.5 in |
| Overall Height | 17.0 in |
| Overall Width | 16.0 in |
| Tank Dimensions (H X W X D) | 16 x 11 x 11 (in.) |
| Approximate Shipping Weight | 23.0 lb |
| Net Weight | 21.0 lb |
| Accessories | |
|---|---|
| Icemaker Connection Kit | IM25EZ (Available at Additional Cost) |
| Installation Kit | Included |
| Replacement Filters | HYDRA-SET5-50 (Pre, Post & Membrane) |
| Replacement Membrane | TW-1812-50 |
| Warranty | |
|---|---|
| Parts Warranty | Limited 1-year |
| Power/Ratings | |
|---|---|
| - | - |
| Filter | |
|---|---|
| App Filter - Product Type | Filtration Reverse Osmosis |
| UPC | 810388030939 |
|---|
