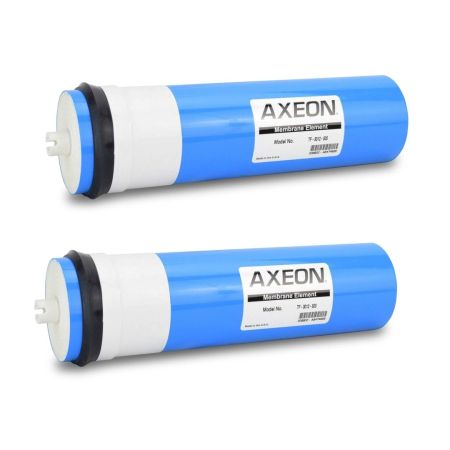

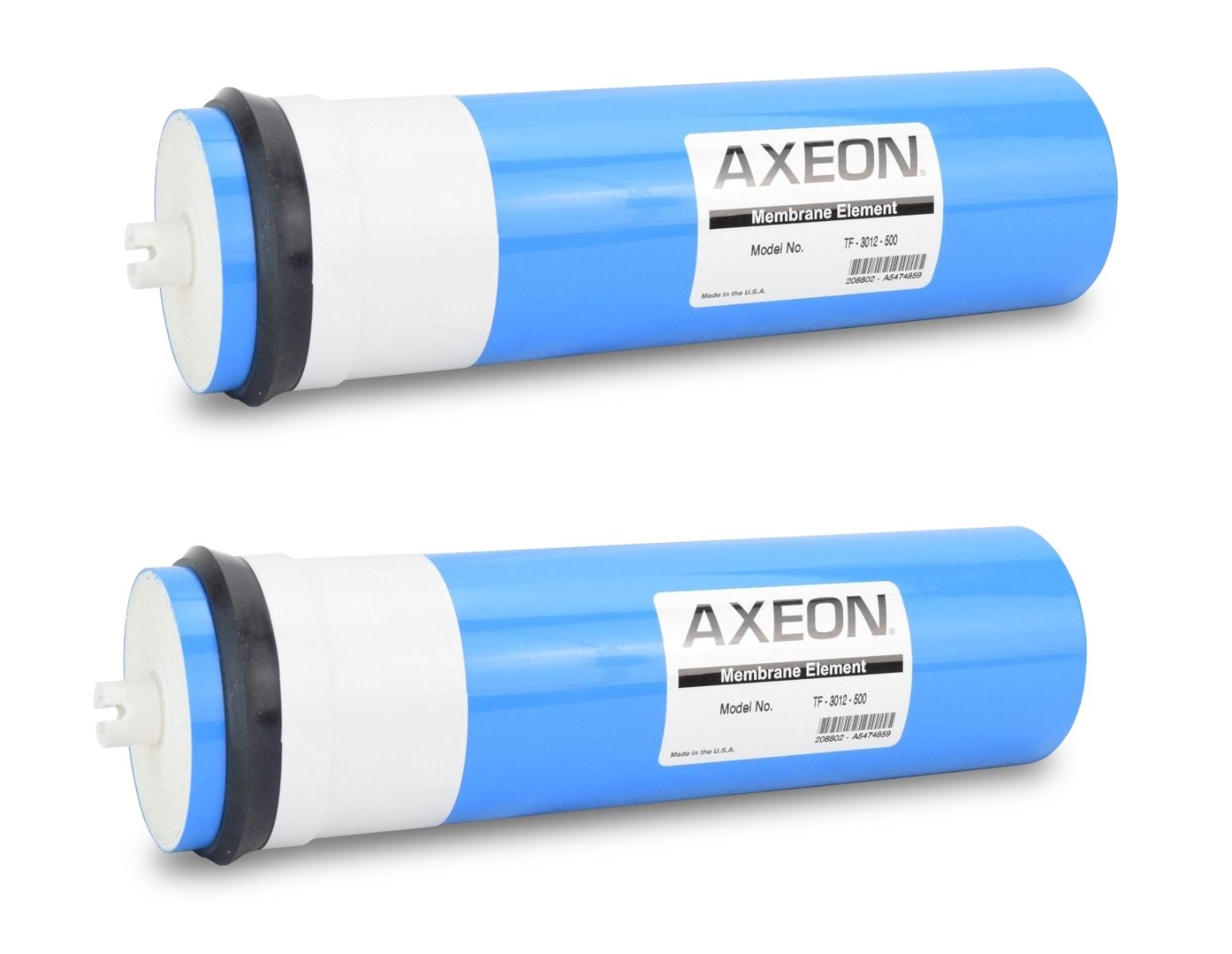

Light Commercial Membrane Pack TW-3012-2PK for CLARA Reverse Osmosis Systems
- High capacity 12" x 3" dual membrane pack for CLARA light commercial ro systems and compatible systems.
- Up to 500 GPD production from each membrane at 70 PSI, 77F temperature.
- 98% nominal salt rejection.
- Improved RO System Performance.
- Superior Quality and Cost Savings.
- Individually Inspected, Qualified and Vacuum Tested
In today’s marketplace there is a growing demand for higher production rates from RO membranes. Many light commercial applications require high water output in which standard thin-film membranes have not been able to meet. Many tap water reverse osmosis membrane elements were initially designed to achieve specified flow and rejection rates under only 15% recovery, thus dispensing a lot of water to the drain.
It is possible to run the membranes in series to meet the increased demands and increase the recovery rate, or to employ a concentrate recycle option on the system. This can however lower operational efficiencies of the system’s performance and increase the system cost. Not having proper pre-treatment can also lead to premature scaling and fouling of the membranes, and subsequent decreased output and life time expectancy of the membranes. While there are several options when increasing the efficiencies and lowering the waste from reverse osmosis systems, many of these concerns can be addressed by starting with the membrane element.

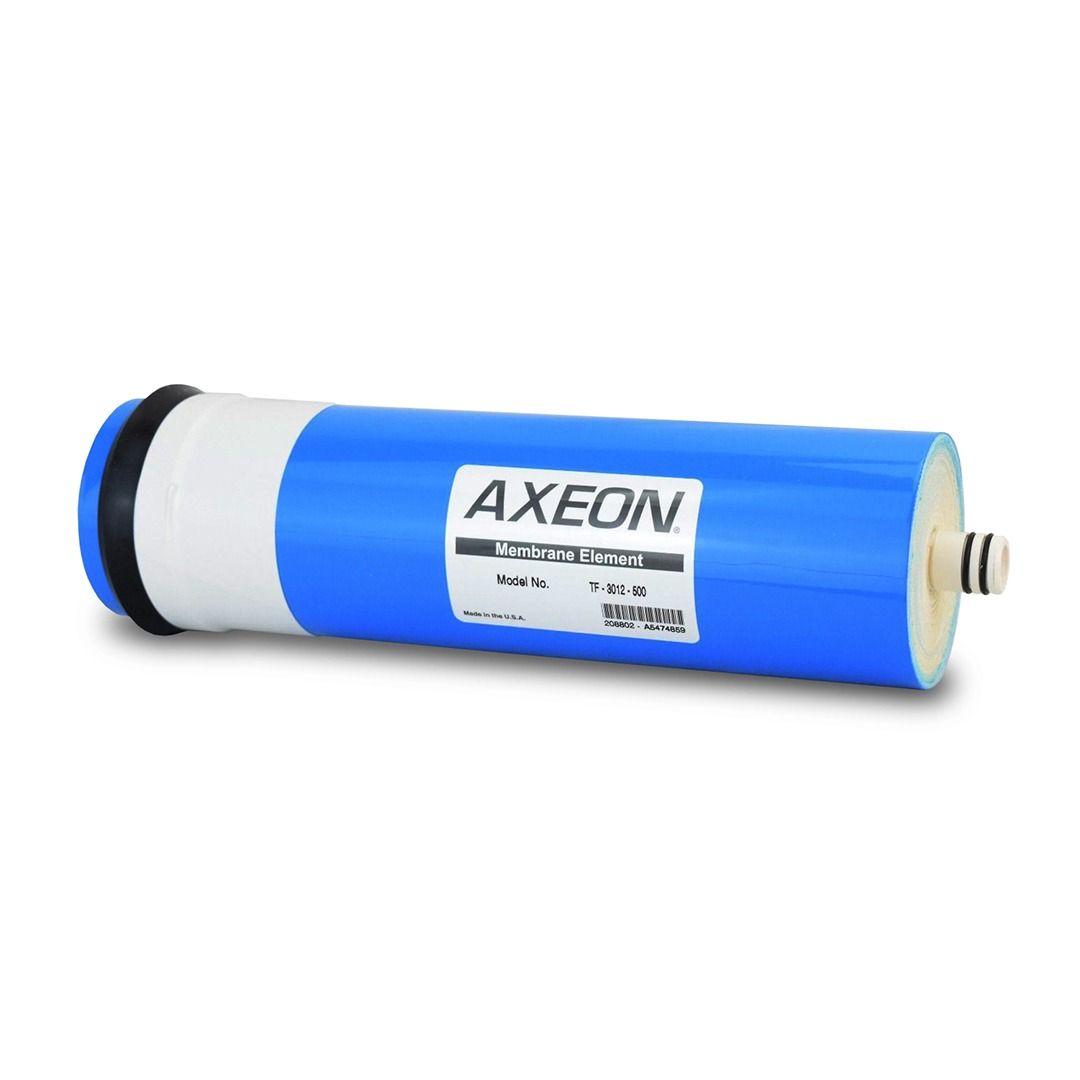

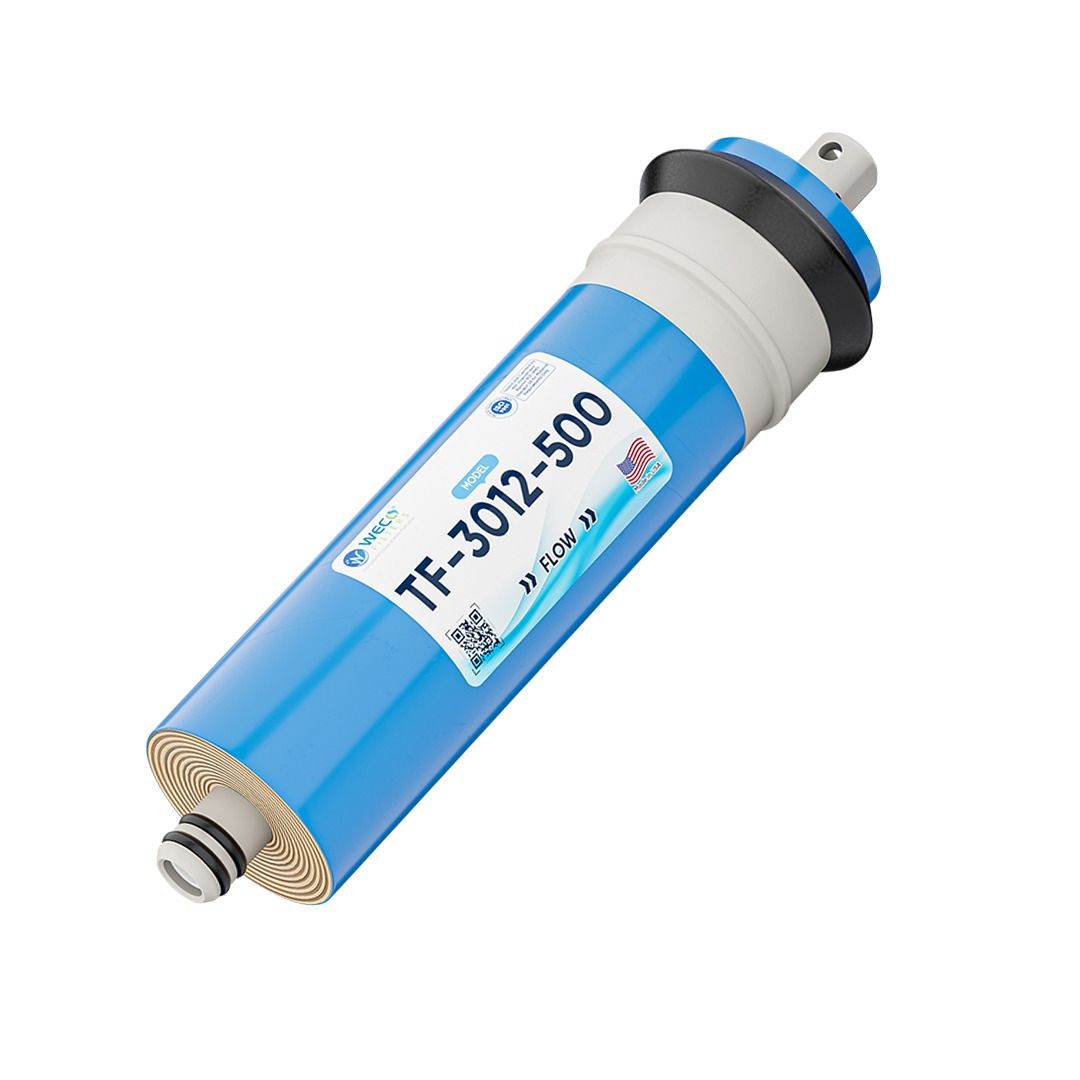

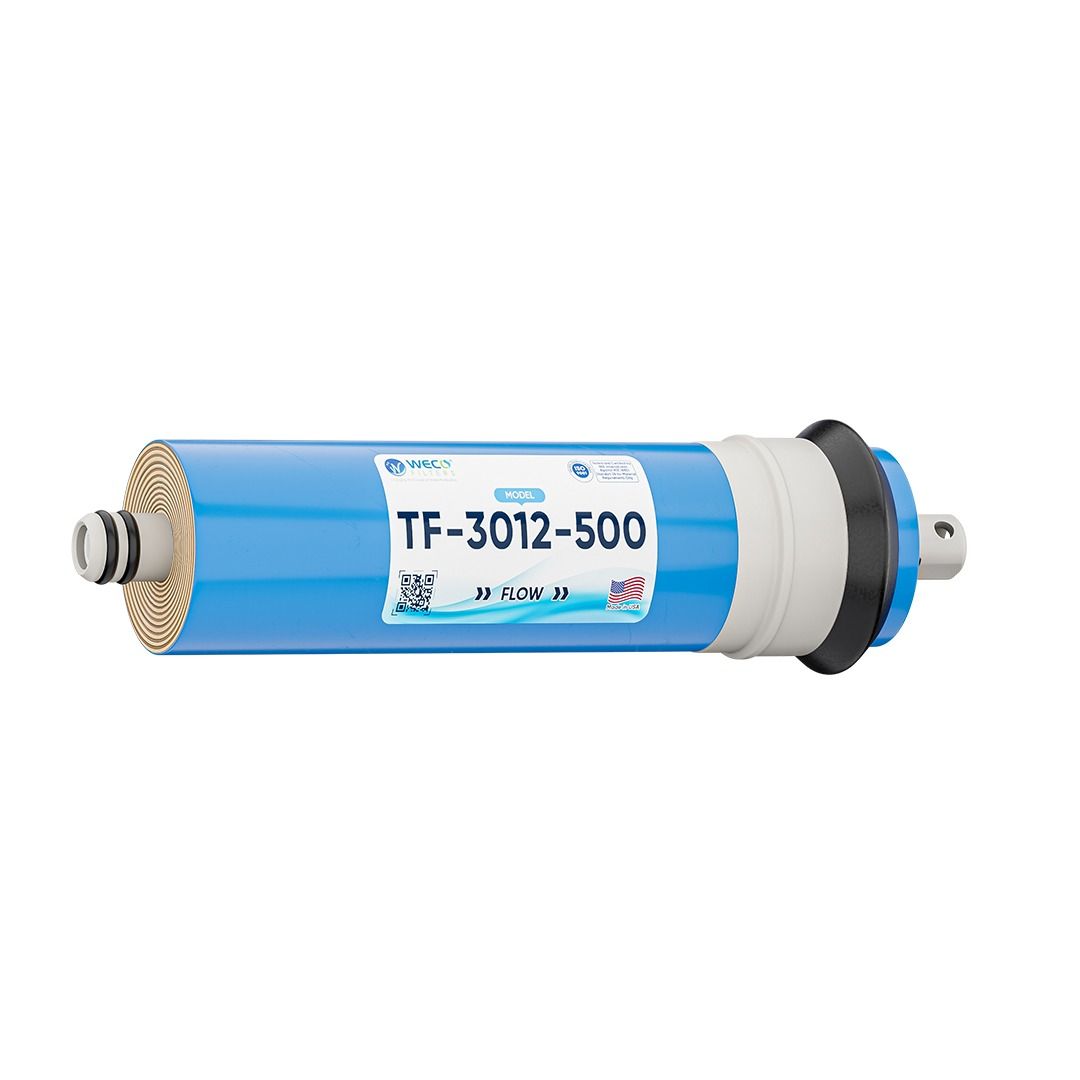

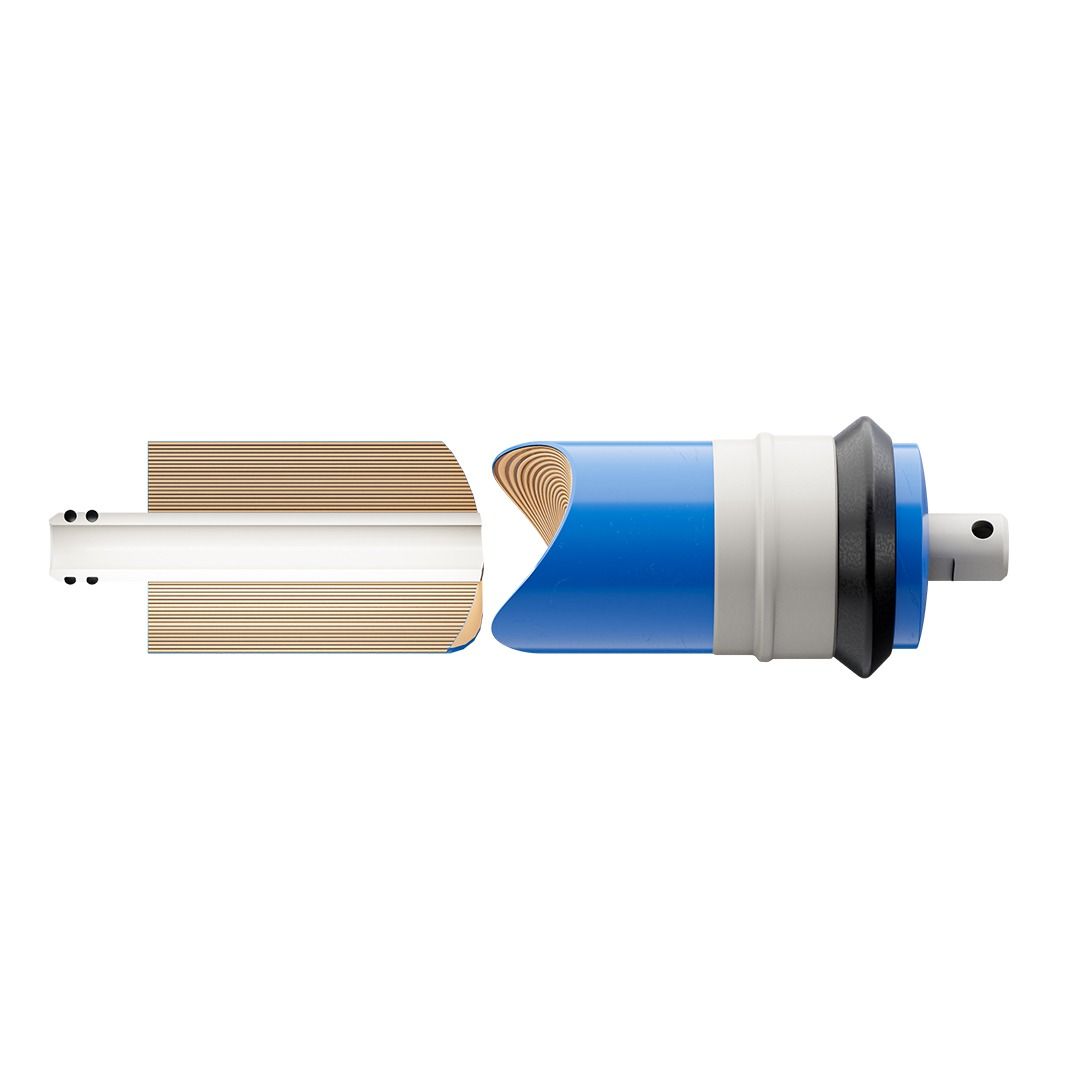

To help light commercial and tap water applications increase operational efficiency, AXEON Water Technologies has introduced the TF-3012-500 reverse osmosis membrane. This membrane produces 500 gallons per day with a 98% salt rejection rate at only 70 psi. Utilizing AXEON’s proprietary HF5 Technology™, the TF-3012-500 membrane increases efficiency and provides a 40% recovery rate and 25% less waste than standard membrane elements. High active membrane area and the unique multi-leaf design provides a better system operation for the user. The membrane can also be retrofitted onto existing systems already in use in the field. The AXEON TF-3012-500 membrane is shipped 100% dry for convenient handling, and to maintain the integrity of the element’s performance. Meet your customer’s higher production rate demands while sending less water to the drain with the AXEON TF-3012-500 RO Membrane.
