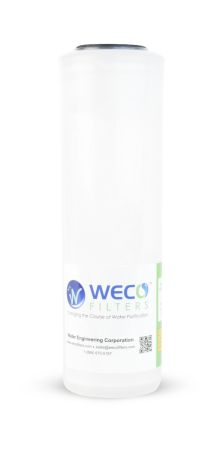

- WECO SOFT-1025 Custom Blend 2 ½ " x 10" Cation Softening Resin Filter Cartridge.
- Capacity ≈100 Gallons @ 10 GPG hardness @ 1 GPM peak flow. For higher flow rates, high hardness and whole house/ commercial applications, please check our custom blend big blue SOFT filters. Please consult a WECO certified water specialist with your hardness/iron readings.
- Available in a nearly limitless number of configurations, contact WECO to discuss your custom blend. Filters come standard in clear color. Filters are individually labeled and boxed or without box and/or label upon request.
- Custom labeling available.
Grease Sump Seal
1Apply food-grade silicone grease to lubricate the O-ring and threads on the sump, then proceed to install the O-ring in the filter sump.
Sump Thread Lube
2Lubrication of the sump threads will assist in the easy removal of the sump when it's time to change the drop-in filter cartridge.
Cartridge Alignment
3Place the filter cartridge into the sump and align it with the notch at the housing's bottom.
Complete Installation
4Place the sump into the filter cap and turn clockwise to secure the filter. Hand-tighten, then use the provided wrench for an extra quarter turn.
Specifications
| Models | Media | ≈Peak GPM | Capacity (gallons) | Primary Functions |
|---|---|---|---|---|
| SOFT-1025 | Cation Softening Resin | 1 | ≈100 Gallons @ 10 GPG | Hardness |
| UPC | 032733545015 |
|---|
