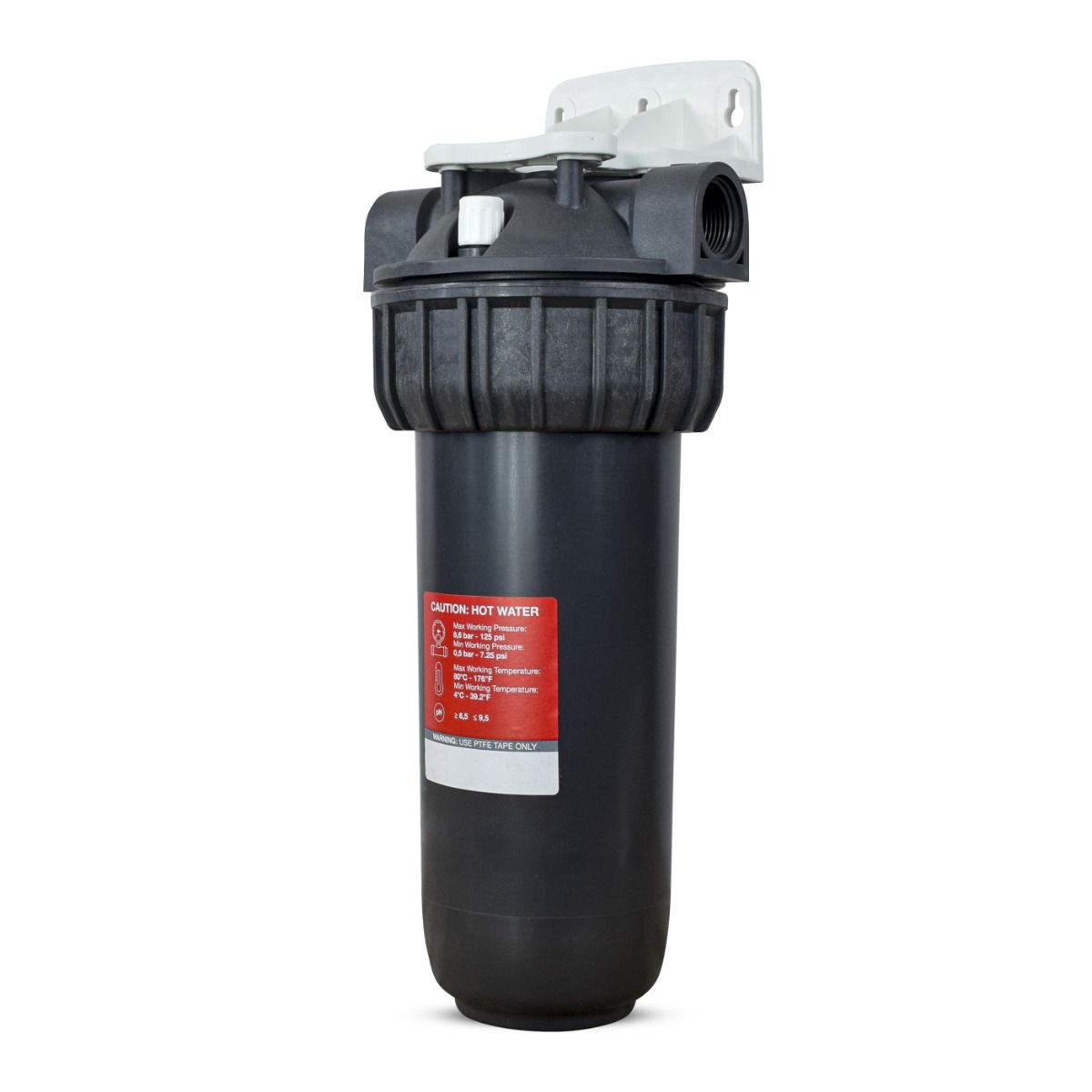

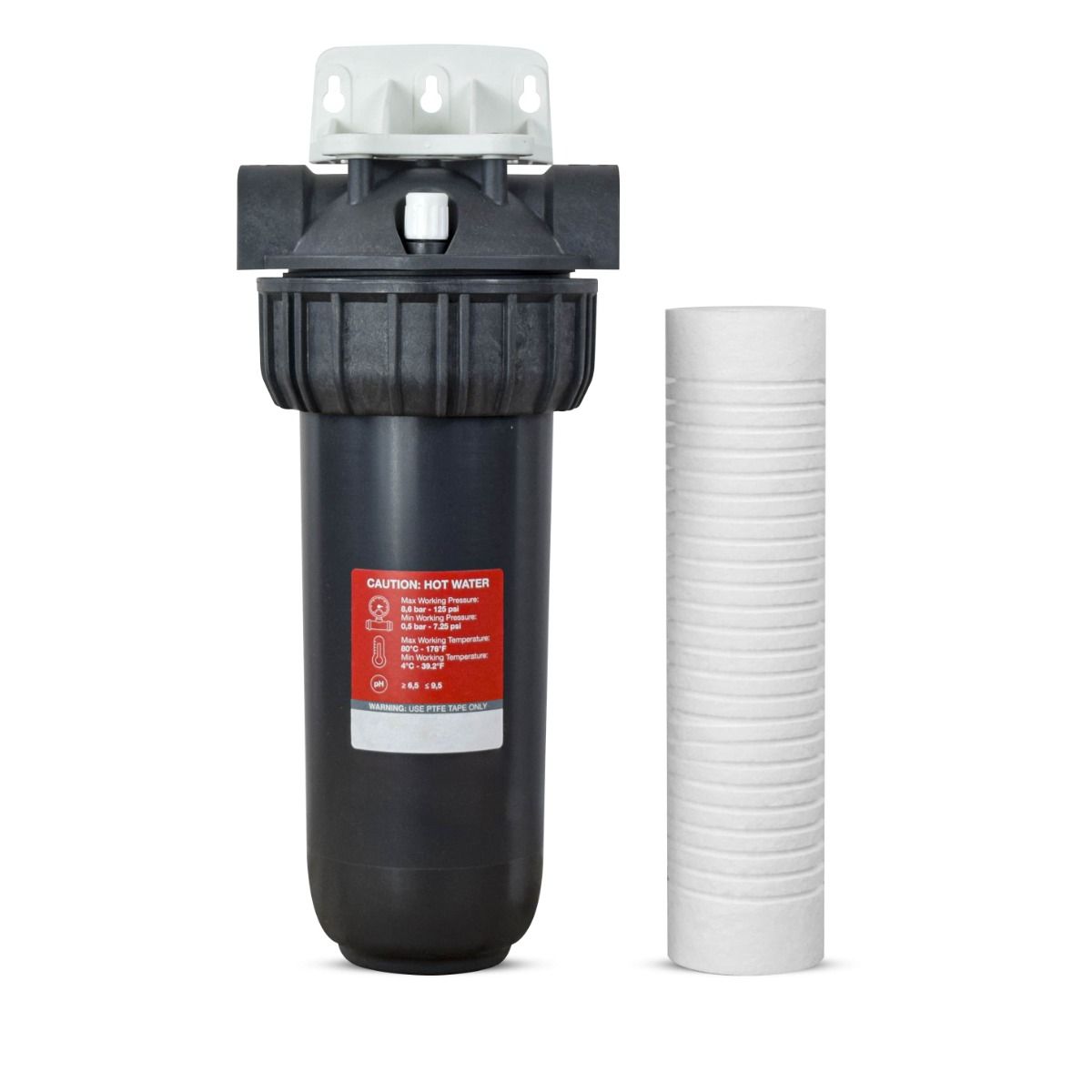

WECO Hot Water Sediment Filtration System with 3/4 Inch FNPT IN/OUT Ports
SKU
REDX-2510L
Be the first to review this product
Related Products
- The WECO Filters HOT Water sediment Filter, equipped with 3/4 Inch FNPT Ports, is specifically designed for hot water sediment filtration (nominal 5 micron), accommodating temperatures of up to 165°F (73.9°C).
- Typically installed downstream of tank type or tankless water heaters, this filter system is complemented by WECO's antiscalant systems, which are installed on the cold water side to safeguard water heaters (purchase separately).

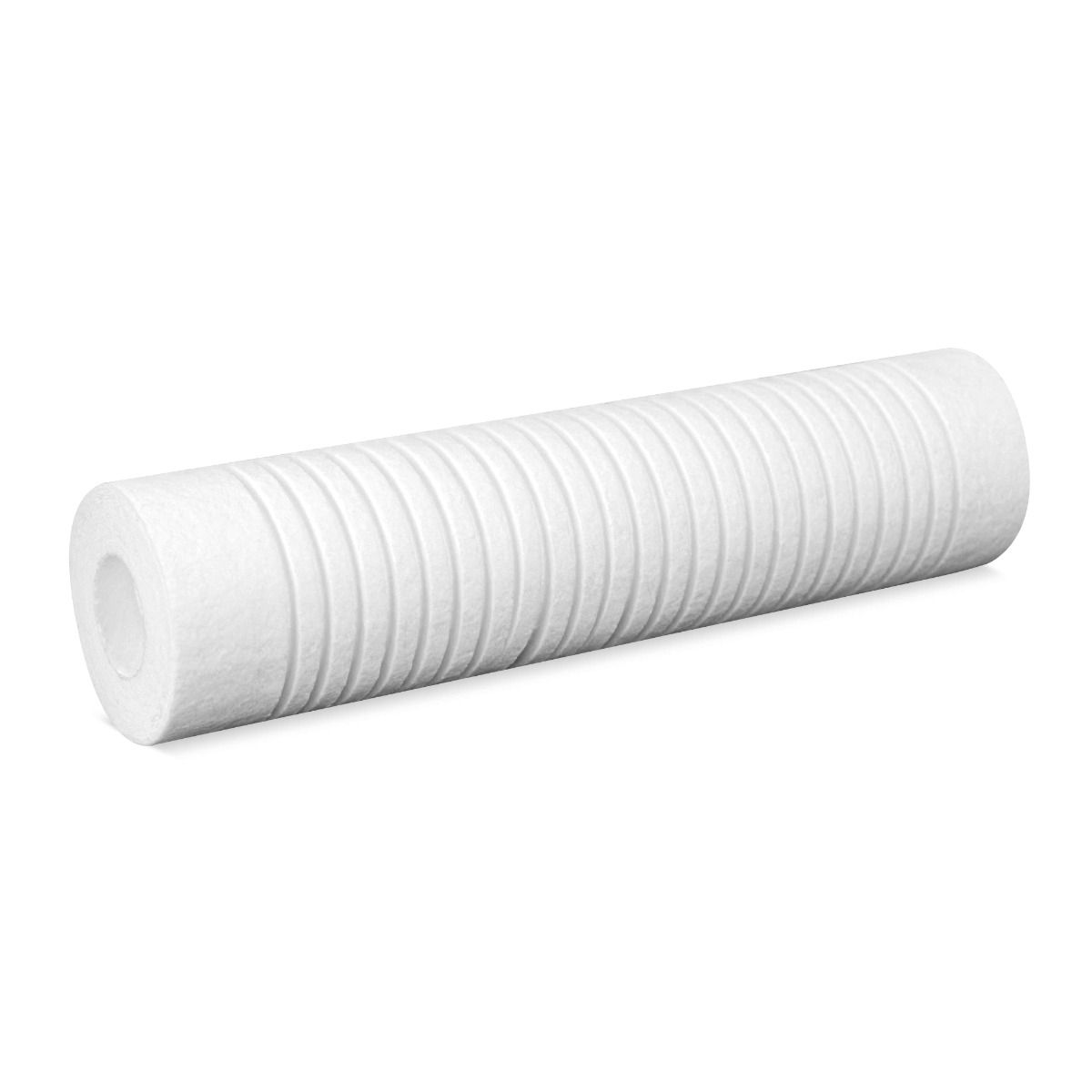

- Utilizes a specialized hot water filter cartridge, measuring 2.5 inches in diameter and 10 inches in height. Includes a wall bracket for easy installation.
- Boasts a maximum working pressure of 125 psi (8.6 bar) and a minimum working temperature of 39.2°F (4°C). Crafted from non-toxic materials, ensuring safe water filtration.
- Components feature reinforced nylon construction for enhanced durability, including the head, ring nut, and sump.
- Equipped with an EPDM O-ring for reliable sealing and a vent-valve featuring a polypropylene body and EPDM O-ring construction.
- The average lifespan of the filter cartridge ranges from 3 to 6 months, providing long-term filtration efficiency.
- Sediment cartridge effectively removes sand, grit, mineral particles, and insoluble iron oxide down to 5 microns.
- Protects water-using appliances like dishwashing machines and clothes washers.
- Filter system dimensions: 6 inches wide, 14 inches tall, 6 inches deep.
- The WECO Filters HOT Water sediment Filter, equipped with 3/4 Inch FNPT Ports, is specifically designed for hot water sediment filtration (nominal 5 micron), accommodating temperatures of up to 165°F (73.9°C).
- Typically installed downstream of tank type or tankless water heaters, this filter system is complemented by WECO's antiscalant systems, which are installed on the cold water side to safeguard water heaters (purchase separately).
- Utilizes a specialized hot water filter cartridge, measuring 2.5 inches in diameter and 10 inches in height. Includes a wall bracket for easy installation.
- Boasts a maximum working pressure of 125 psi (8.6 bar) and a minimum working temperature of 39.2°F (4°C). Crafted from non-toxic materials, ensuring safe water filtration.
- Components feature reinforced nylon construction for enhanced durability, including the head, ring nut, and sump.
- Equipped with an EPDM O-ring for reliable sealing and a vent-valve featuring a polypropylene body and EPDM O-ring construction.
- The average lifespan of the filter cartridge ranges from 3 to 6 months, providing long-term filtration efficiency.
- Sediment cartridge effectively removes sand, grit, mineral particles, and insoluble iron oxide down to 5 microns.
- Protects water-using appliances like dishwashing machines and clothes washers.
- Filter system dimensions: 6 inches wide, 14 inches tall, 6 inches deep.
| UPC | 749460856146 |
|---|
