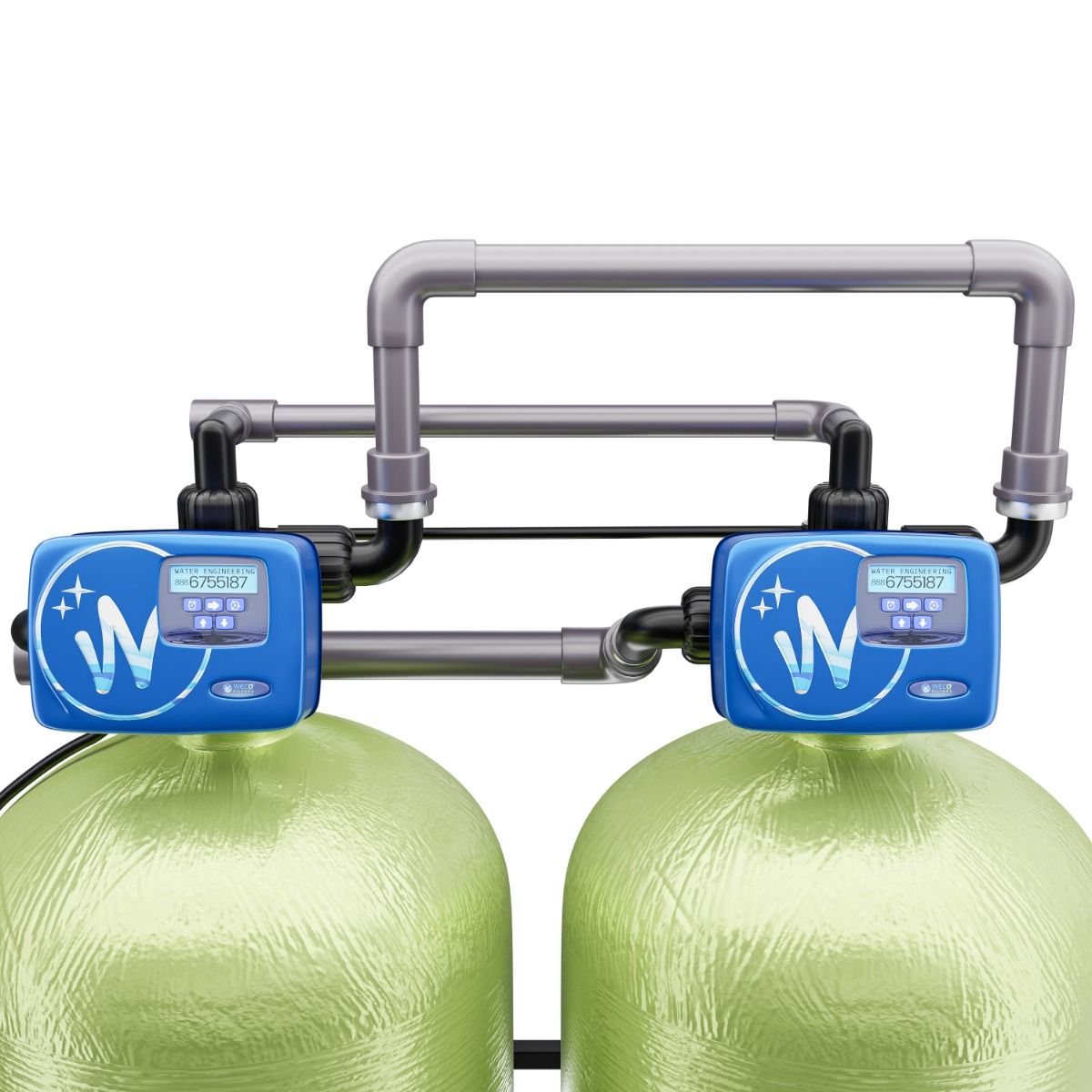

WECO Commercial Backwashing Filters with Katalox Light® for Iron, Manganese & Hydrogen Sulfide Reduction

SKU
KL-3900COM-NXT
Rating:
100 % of 100
1  Review Add Your Review
Price: $18,015.41
Free Shipping
Freight Shipment
Parts In stock
- +
  • Heavy-duty commercial water filtration system with Katalox Light® media.
  • Capable of filtering Suspended Solids, Sediments, Turbidity, Organics, Color & Odor.
  • Capable of reducing Iron, Manganese and Hydrogen Sulfide levels in water.
  • Capable of reducing Arsenic, Radium, Heavy Metals, & Radionuclides in water.
  • Designed for single tank or multi-tank systems, alternating or interlocking.
  • 3" IN/OUT Ports. Very high service flow rates. Control valve custom tailored to tank size ordered. Contact us with water report, pipe sizes, water consumption, peak flow, service flow data for a customized quote.

WECO Commercial Backwashing Filters with Katalox Light® for Iron, Manganese & Hydrogen Sulfide Reduction

WECO commercial backwash filter with Katalox Light® is a specialized system for treating community well water supplies. Made in Germany, Katalox Light consists of manganese dioxide (MnO2) coated onto naturally mined ZEOSORB. This is a light-weight filtration media with many valuable functions and properties related to water treatment and remediation. Katalox Light media has a very high surface area which filters out particulate matter down to three microns. This is an ideal media to use for removing Totals Suspended Solids (TSS), turbidity and sediments like sand and oxidized mineral particles. Katalox Light also has oxidation properties. Iron, manganese and hydrogen sulfide are easily removed with this media. The active surface coating oxidizes and precipitates soluble iron, manganese and hydrogen sulfide, which are flushed away in the back wash operation. The media also removes lead, copper, radium, uranium as well as other heavy metals and radionuclides.

Commercial backwashing filters are available in a variety of sizes. Please consult with WECO Technical Support for assistance in selecting the proper size filter to meet your water purification requirements.

Standard Features

Connections

  • 3" NPT IN/OUT
  • 2" NPTF drain port.

Advantages

  • High efficiency removal capacity of Iron, Manganese and Hydrogen sulfide.
  • Effective reduction of Arsenic, Zinc, Copper, Lead, Radium, Uranium, radionuclides and other heavy metals.
  • Typical media replacement every 5 - 7 years* (depends on water chemistry).
  • Low operational costs.

Notes

  • A pH raise can occur for several months after installation.
  • Check table below for backwash/service flow rates. Contact us if you need help.

Operating Limits

  • Operating Pressure 20-125 PSI
  • Operating Temperature 34-110 °F
  • Power Supply 120 VAC 60 Hz
  • Output 24 V
  • Max. backwash (25 psi drop): 100 GPM
  • Distributor pilot: 3" OD

Specifications

Mineral Tank Dimensions (in) Katalox Light® Media Capacity (cu.ft) Total Height (in) Service Flow (GPM) Peak Flow (GPM) Backwash Flow (GPM)
24" x 60" 8 84 25 90 40
24" x 72" 10 96 27 90 45
30" x 72" 15 102 50 140 65
36" x 72" 20 102 70 200 90
More Information
UPC 670087223250
