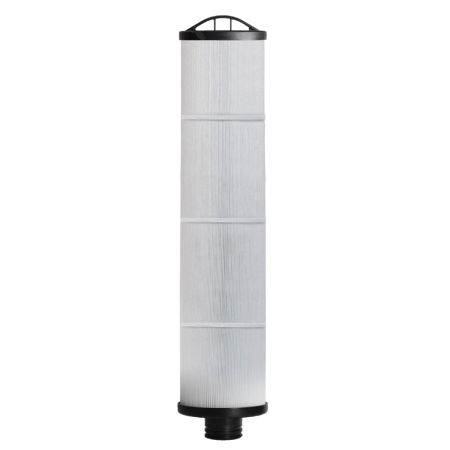

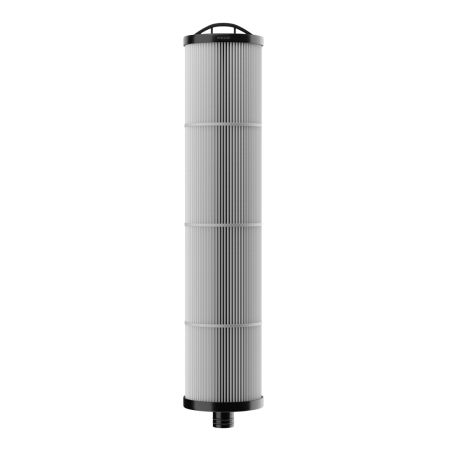

Enpress Red Filtration Series High Capacity Cartridge - 2” Port Pleated Activated Carbon

SKU
CT-COMM-CARB
Be the first to review this product
Price: $340.37
Free Shipping
Parts In stock
- +
  • Enpress 2 inch port cartridge tank replacement filter cartridge.
  • Chlorine reduction service life of up to 150,000 gallons @ 15 GPM flow rate.
  • Durable and chemical-resistant polypropylene filter and cap construction.
  • Double EPDM O-ring seals for secure connections.
  • Filter belly bands for added stability.
  • Unique filter handle design for easy removal.
  • Extended service life, contaminant removal, and dirt holding capacity.
  • Ensures no bypass of contaminants and high chemical compatibility.
  • Low pressure drop equals high flow with bacteria and chemical resistance.
  • Ease of filter removal from housing for maintenance.
  • Prevents collapsing of filters under high flow or contaminant load applications.
  • Ideal for residential, food service, rental fleets, commercial, and industrial applications.
  • Suitable for make-up water, RO pre-filtration, cooling towers, chill water loops, and metal finishing.
  • Effective in process water treatment for turbidity, particulate, and colloidal suspensions.
  • Useful in community water systems and livestock and poultry water systems.
  • Can replace bag filters with higher surface area and capacity in various water-based fluid solutions.

Cartridge Replacements

Press the red pressure relief valve

Pull snap-ring

Lift to cap

Install the cartridge

Put the cap back on

Install the snap-ring

Put on the protective cap

Easy Replacements No Tools Means
No Tools

Red series filters are high flow rate pleated filtration solutions with extended life and use, with filtration levels of 1 absolute, 5, 20, 50, and 150 microns, along with an activated carbon (PAC) solution.

The filters are designed with a large filtration layer that extends filtration level contamination and service life while achieving high flow rates up to 150 GPM (568 LPM) and low pressure drop. The filters will outperform competitive filtration solutions in all turbidity applications, including silt, rust, and other particle filtration.

The red series also provides lower shear water velocity as the raw water passes through the filter, allowing for more contact time and interaction with the extensive surface area of the filters. This results in higher water quality and longer life of the filtration system. A direct replacement for expensive stainless steel housings, red series filters have significant surface area, low pressure drop, and high flow rate capabilities. The filters are ideal as polishing or pre-filters in applications requiring fine filtration and high capacity.

Cleanable from 5 microns and up and utilizing 100% cellulose free media, these are the commercial filtration solutions of the future! Each filter comes with a unique handle designed top cap for lightweight and easy removal, a bag for proper disposal, and a double O-ring connection. All components and materials are manufactured from NSF 61 and FDA Certified materials.

Better
Filtration

There`s No
Competition

Activated carbon (PAC) filter: Service flow rates up to 15 GPM (57 LPM) with a removal capacity up to 150,000 gallons and a 90% chlorine reduction—improving taste, odor, sediment, and chlorine

Maximum pressure differential: 40 psi

Maximum flow rate of 1 micron absolute: 50 GPM (190 LPM)

Maximum flow rate of all other configurations: 150 GPM (568 LPM)

Red
Series
Configuration

CT-COMM1A: 1 micron absolute pleated PP

CT-COMM50: 50 micron PP pleated

CT-COMM05: 5 micron PP pleated

CT-COMM150: 150 micron PP pleated

CT-COMM20: 20 micron PP pleated

CT-COMM-CARB: Pleated activated carbon

Top Cap option with pressure release Valve & Removal Handles

2.5” Thread top/bottom Res./LC Cap threaded connection

Snap Ring I.D. Tag connection.

2.5” Bottom Drain Plumbing for Res./LC Filters.

Standard Features

Features

  • Durable and chemical resistant polypropylene filter and cap construction
  • Double EPDM O-ring seals
  • Filter belly bands
  • Unique filter handle design

Benefits

  • Extended service life, contaminant removal, and dirt holding capacity
  • Insures no bypass of contaminants and high chemical compatibility
  • Low pressure drop = high flow
  • Bacteria and chemical resistant
  • Ease of filter removal from housing
  • High dirt holding capacity
  • Prevent collapsing of filters under high flow or contaminant load applications

Applications

  • Ideal for residential, food service, rental fleets, commercial and industrial applications
  • Make-up water, RO pre-filtration, cooling towers, chill water loops, metal finishing
  • Process water (turbidity, particulate, colloidal suspensions)
  • Community water, livestock and poultry water systems
  • Replacement of bag filters with more surface area and capacity
  • Other water-based fluid solutions
