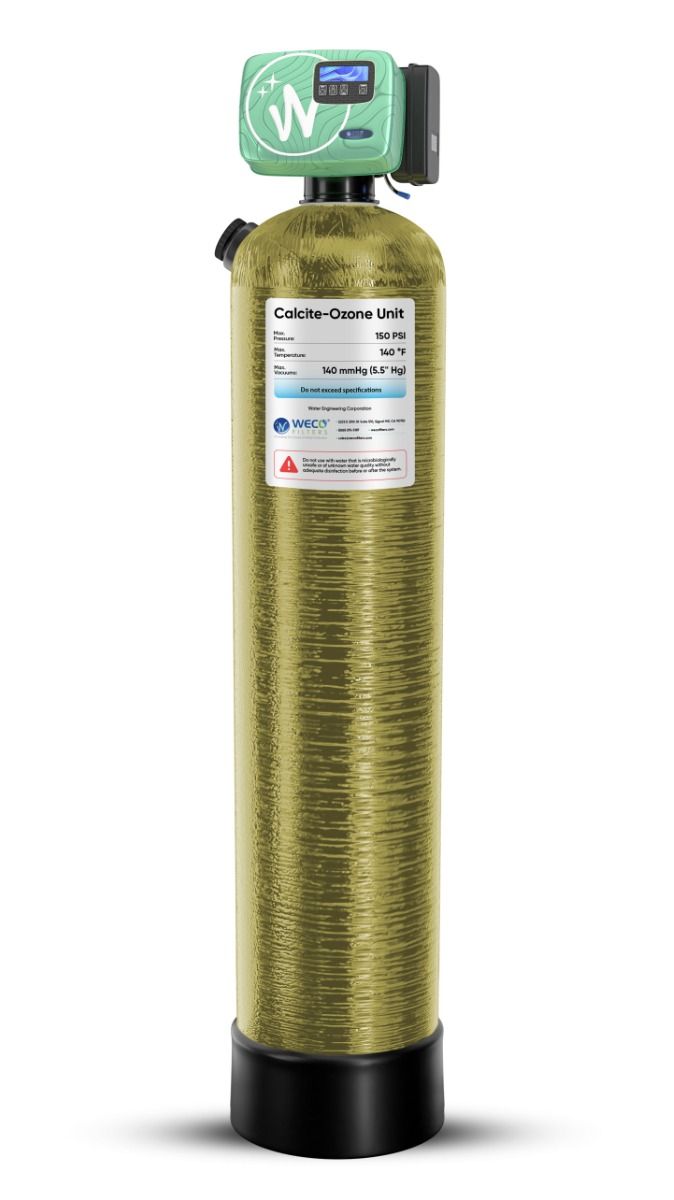

WECO CALMOX-1354-OZ Backwashing Filter With Calcite & Corosex for Acidic Water pH Neutralization
- Backwash filter with high-flow riser, ozone sanitation, and easy media replenishment.
- Suitable for a wide range of applications, including well water whole-house and commercial use.
- Proprietary blend of natural crushed and screened white marble calcite media combined with processed hard bead magnesia neutralizes acidic water and raise the pH.
- Prevents damage to plumbing, boilers and manufacturing equipment.
- Stops lead, copper and iron leaching from pipes and solder due to low water pH.
- Eliminates blue, green and red stains in sinks, tubs and showers.
- Improves water clarity, removes tubidity.
- Dome hole, included funnel and natural color translucent tank simplifies the periodic replenishment of media.
- Built in USA with global components.
Calcite/Corosex OZ Backwash Neutralizing System For Treatment of Acidic Water PH
Our proprietary mineral filter unit utilizes a blend of natural crushed white marble calcite and processed hard bead magnesia, effectively neutralizing acidic water and elevating pH levels. This preventive measure safeguards plumbing, boilers, and manufacturing equipment, halting lead, copper, and iron leaching caused by low water pH. The filter eliminates blue, green and red oxide stains in sinks, tubs, and showers, enhances water clarity by removing turbidity, and simplifies media replenishment through a dome hole, included funnel, and a translucent tank. Experience improved water quality with this comprehensive solution.
WECO backwashing filters are offered in a range of sizes. For guidance in choosing the right filter size to fulfill your water purification needs, kindly reach out to WECO Technical Support for expert assistance.
Standard Features
Strength and durability. Non corrosive.
Unique water distribution technology creates fluidity of the media bed and extends contaminant removal capacity.
State-of-the-art control head designed for residential and commercial water applications requiring high flow rates.
Regulates all cycles of water filtration with a solid state microprocessor, front panel settings and LCD display.
Fully automated performance.
EOG generates active ozone during the backwash process and retains an ozone head in the filter. This assists in the oxidation and cleaning of contaminants trapped in the filter bed.
Standard MNPT (Male National Pipe Thread) inlet, outlet, drain, and 120 VAC electrical connections are provided. Various commonly used adapter sizes and styles are in stock available to accommodate your copper or PEX pipes(recommended for low pH).
Installation & operation manual included.
- Automated control of EOG module by the filter control valve.
- Onboard diagnostic LED light to convey real-time performance status of the unit.
- Operating Pressure 20-125 PSI
- Operating Temperature 40-110 °F
- Power Supply 120 VAC 60 Hz
- Output 12 VAC 500 mA
- Pre-treatment options are available for water chemistries that fall outside the recommended parameters. Feel free to contact us with your water report if you require assistance or guidance.
- Refer to the table below for backwash flow rate requirements. If you are unable to meet the backwash flow rate, consider running multiple units plumbed in parallel as a solution.
- Some air in household plumbing is normal. The valve features an internal check valve on the inlet. Install a thermal expansion tank ahead of the water heater.
- Safeguard your plumbing, boilers, and manufacturing equipment by halting lead, copper, and iron leaching caused by low water pH.
- Backwashes and sanitizes the media bed at customizable intervals, minimizing cementing of the media bed.
- Operates with low operational costs.
Installation
External Bypass Valve Included
The bypass provides greater control over the equipment and the water supply to your house, offering service, bypass, diagnostic, and shutoff modes.
Drain Valve
A high-flow backwashing is conducted frequently (customizable) to prevent void areas in the medium from becoming filled with particles removed from the water, thereby preventing a pressure drop from the outlet. The backwash water is flushed through the drain.
Optional Stainless Flex Connectors
We recommend the use of full-flow flexible stainless steel connectors to reduce installation costs and upkeep expenses.
This eliminates the need for unions and allows tank expansion, which may prevent costly leaks.
Annual Maintenance
Inline Check Valve
Replaceable inline check valve part# 316-CV-OZ (every 12 months).
Corona Discharge cell cleaning kit part# OZCLEAN-KIT
Specifications
| Models | Media Capacity (cu.ft) |
Mineral Tank Dimensions (in) |
Total Height (in) |
Connector Size (in) |
Service Flow (GPM) |
Peak Flow (GPM) |
Backwash Flow(GPM) |
|---|---|---|---|---|---|---|---|
| CALMOX-1054-OZ | 1 | 10 x 54 | 66 | 1 MNPT | 5 | 14 | 5.3 |
| CALMOX-1354-OZ | 2 | 12 x 52 | 66 | 1 MNPT | 10 | 18 | 9 |
| UPC | 670087223205 |
|---|
