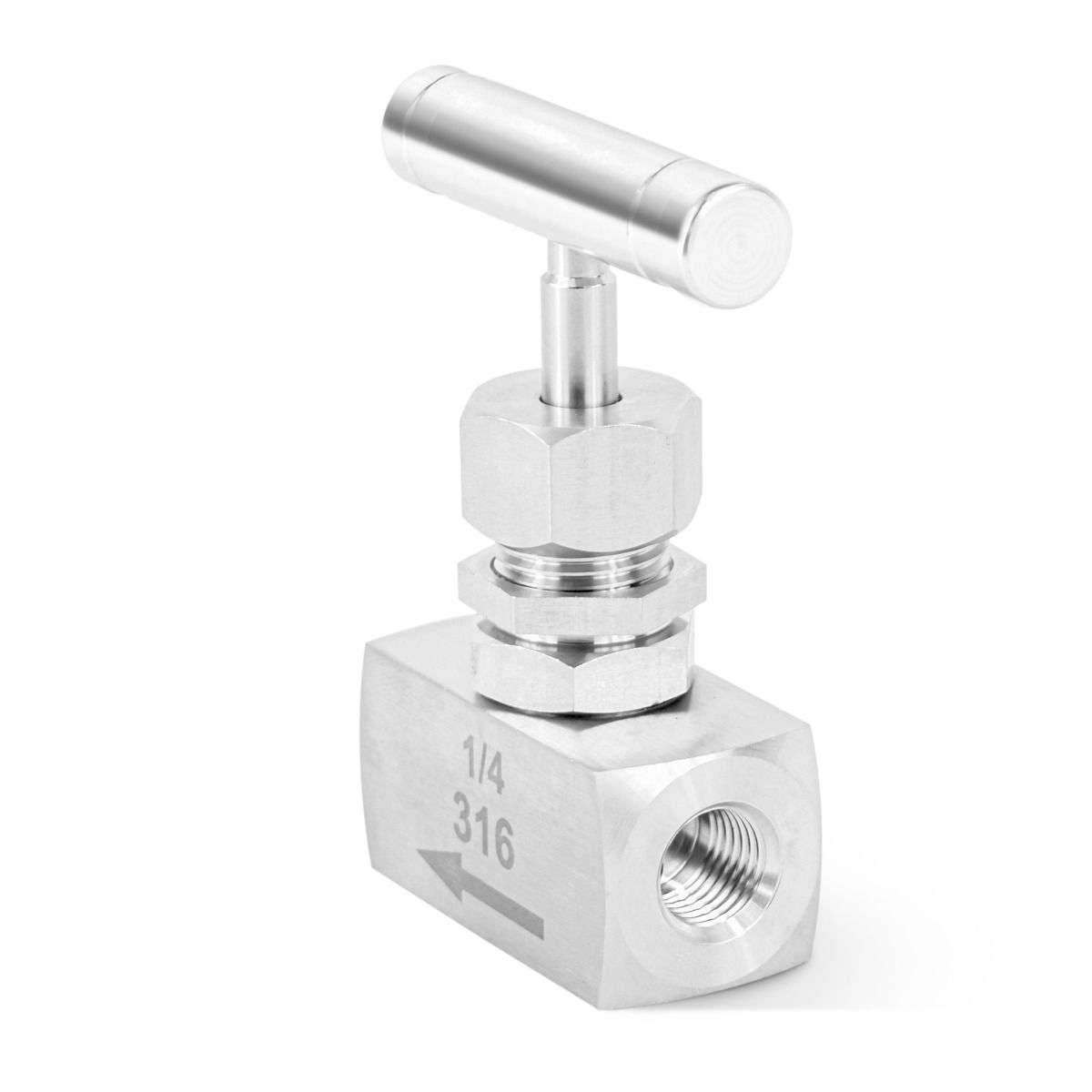

WECO Stainless Steel Needle Valve for Water Flow Regulation
Stainless steel needle valves feature a panel mountable, two piece design allowing for flexibility during installation.
Standard Features
| Valve Model | 1/4" Needle Valve | 3/8" Needle Valve | 1/2" Needle Valve | 3/4" Needle Valve |
|---|---|---|---|---|
| Part Number | SSNV14 | SSNV38 | SSNV12 | SSNV34 |
| Maximum Operating Pressure | 1000 psi @ 77 °F | 1000 psi @ 77 °F | 1000 psi @ 77 °F | 1000 psi @ 77 °F |
| Operating Temperature Range | 32 °F to 250 °F | 32 °F to 250 °F | 32 °F to 250 °F | 32 °F to 250 °F |
| End Connections | 1/4" FNPT | 3/8" FNPT | 1/2" FNPT | 3/4" FNPT |
| Panel Hole | 0.635" | 0.635" | 0.635" | 0.750" |
| Max Panel Thickness | 3/16" | 3/16" | 3/16" | 3/16" |
| UPC | 719284871175 |
|---|
