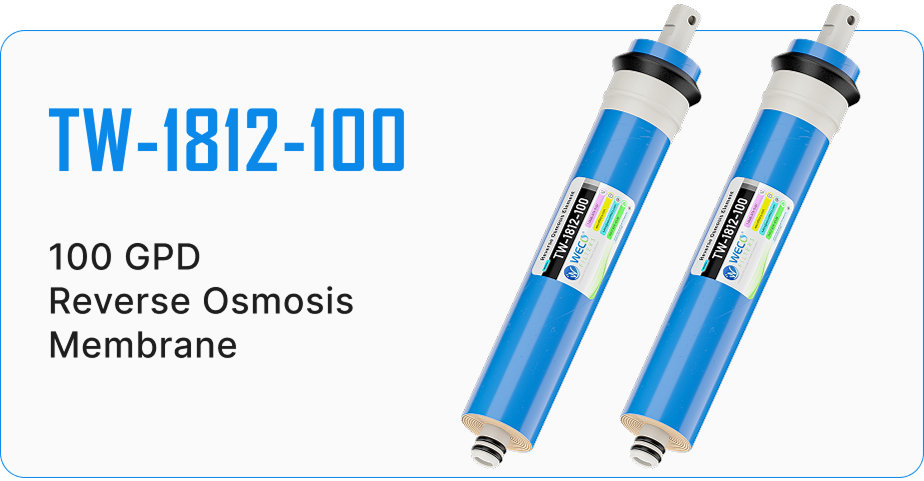

Hydron 100 GPD Reverse Osmosis Membrane

SKU
TW-1812-100
Be the first to review this product
Price: $50.35
Parts In stock
- +

HYDRON Membrane Elements are a reliable alternative for your residential and small system membrane needs. HYDRON Membranes are manufactured in a State-of-the-Art, ISO-9001-2000 certified automatic rolling facility, providing you with a precise and advanced membrane element that not only delivers an attractive cost to benefit ratio, but also gives you a membrane that has consistently of high quality and performance.


HYDRON Membrane Elements can be used in a variety of small size system applications, such as household water purification, laboratory, hydroponics, hospital, and many other applications where a reliable, performance membrane is needed.

50 Gallons Per Day Reverse Osmosis Membrane

Pre-Assembled and DIY Friendly

Certified
Quality

Manufactured in a state-of-the-art, ISO-9001-2000 certified automated facility.

99 Percent Contaminant Removal

High Daily
Output

elivers up to 100 gallons of highly purified water every single day.

WECO Crystal Clear Water

Long
Reliability

Consistent high-quality performance with a 2-year lifespan.

Standard Size Cartridges

Broad
Application

Perfect for household purification, aquariums, hydroponics, and lab use.

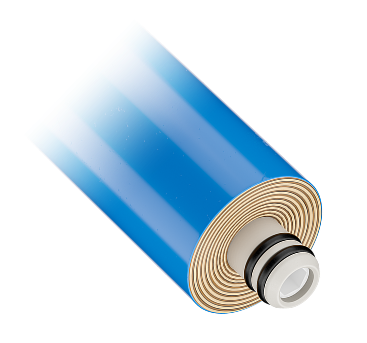

Hydron Membrane

HYDRON Membranes are reliable and affordable filters for home and small business use.

High Quality:

Manufactured in a modern, certified facility (ISO-9001-2000) to ensure consistent performance and great value.

Versatility:

Great for various small systems, including home water purification, laboratories, hospitals, and hydroponics.

TESTING CONDITIONS

Testing Pressure: 60 psi (0.41 MPa) (4.1 bar)
Temperature of Testing Solution: 77°F (25°C)
Concentration of Testing Solution (NaCl): 250 ppm
pH Value of Testing Solution: 7.5
Recovery Rate of Single Membrane Element: 15%

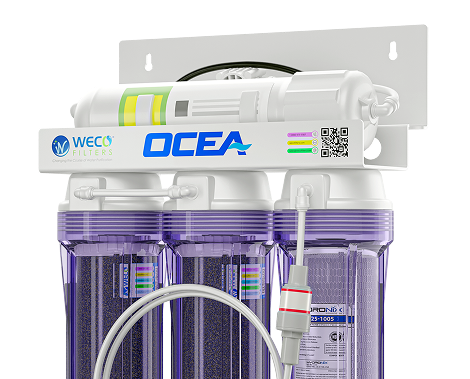

Testing System

EXTREME OPERATION CONDITIONS

Max Working Pressure: 300 psi (2.07 MPa) (20.7 bar)
Max. Feedwater SDI: 5
Residual chlorine Concentration of Feedwater: <0.1 ppm
pH Range of Feedwater during Continuous Operation: 3-10
pH Range of Feedwater during Chemical Cleaning: 2-12
Max. Temperature for Continuous Operation above pH 10: 95°F (35°C)
Max. Feedwater Temperature: 113°F (45°C)
Single Membrane Max. Pressure Drop: 10 psi (0.07 MPa) (0.7 bar)
This Membrane is Tested and Certified by NSF International against NSF/ANSI Standard 58 for material requirements only.

IMPORTANT INFORMATION

  • Under certain conditions, the presence of free chlorine and other oxidizing agents will cause premature membrane failure.
  • Since oxidation damage is not covered under warranty, HYDRON recommends removing residual free chlorine by pre treatment prior to membrane exposure.
  • Any specific application must be limited within the extreme operating conditions.
  • We strongly recommend you to refer to the latest edition of technology manual and design guide prepared by HYDRON Membrane Technology or consult experts proficient in membrane technology.
  • In case the customer fails to follow the operating conditions as specified in this manual, HYDRON Membrane Technology will assume no liability for all results.
  • The permeate flow listed in the table is the average value.
  • The permeate flow of single membrane element is within a tolerance not exceeding ±20% of nominal value.
  • Discard the RO-filtered water produced during the first one hour after system start-up.
  • During storage time and run time, it is strictly prohibited to dose any chemical medicament that may be harmful.
More Information
UPC 609132245107
Frequency For Cartridge Replacement Every 24 Months
