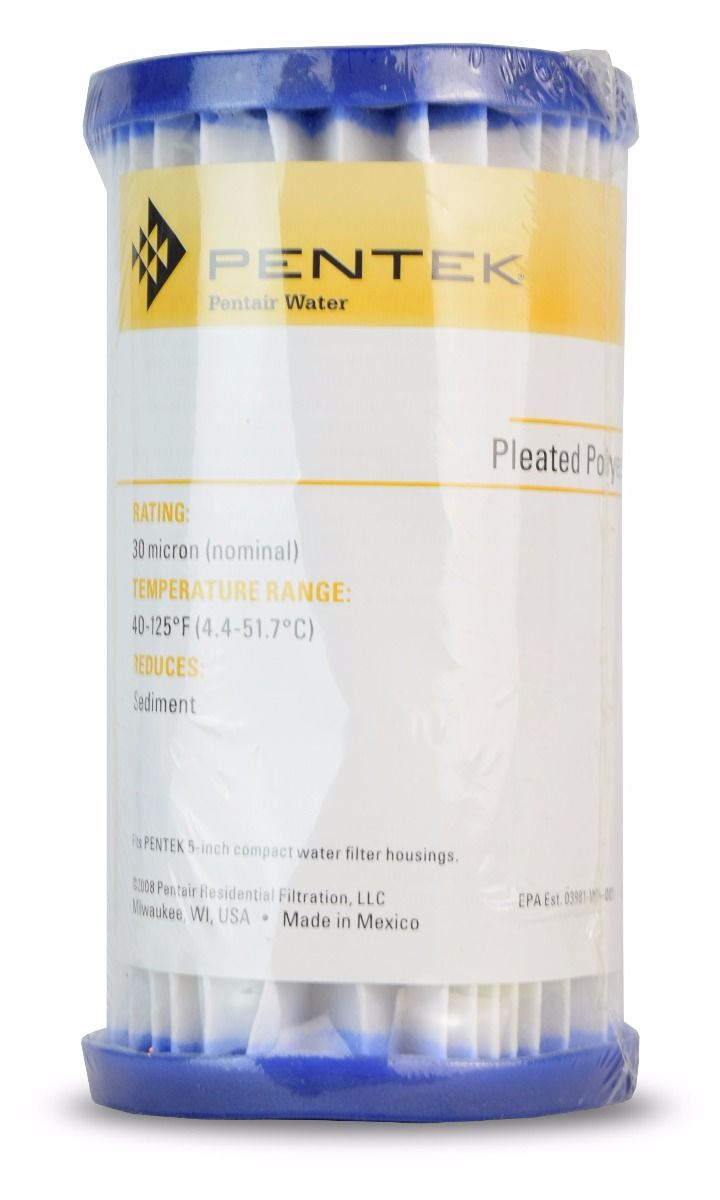

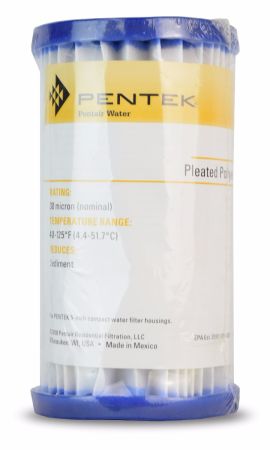

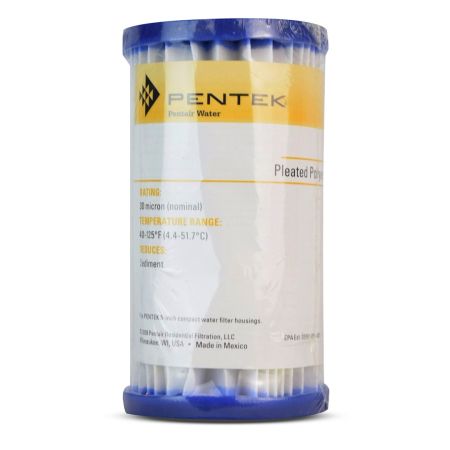

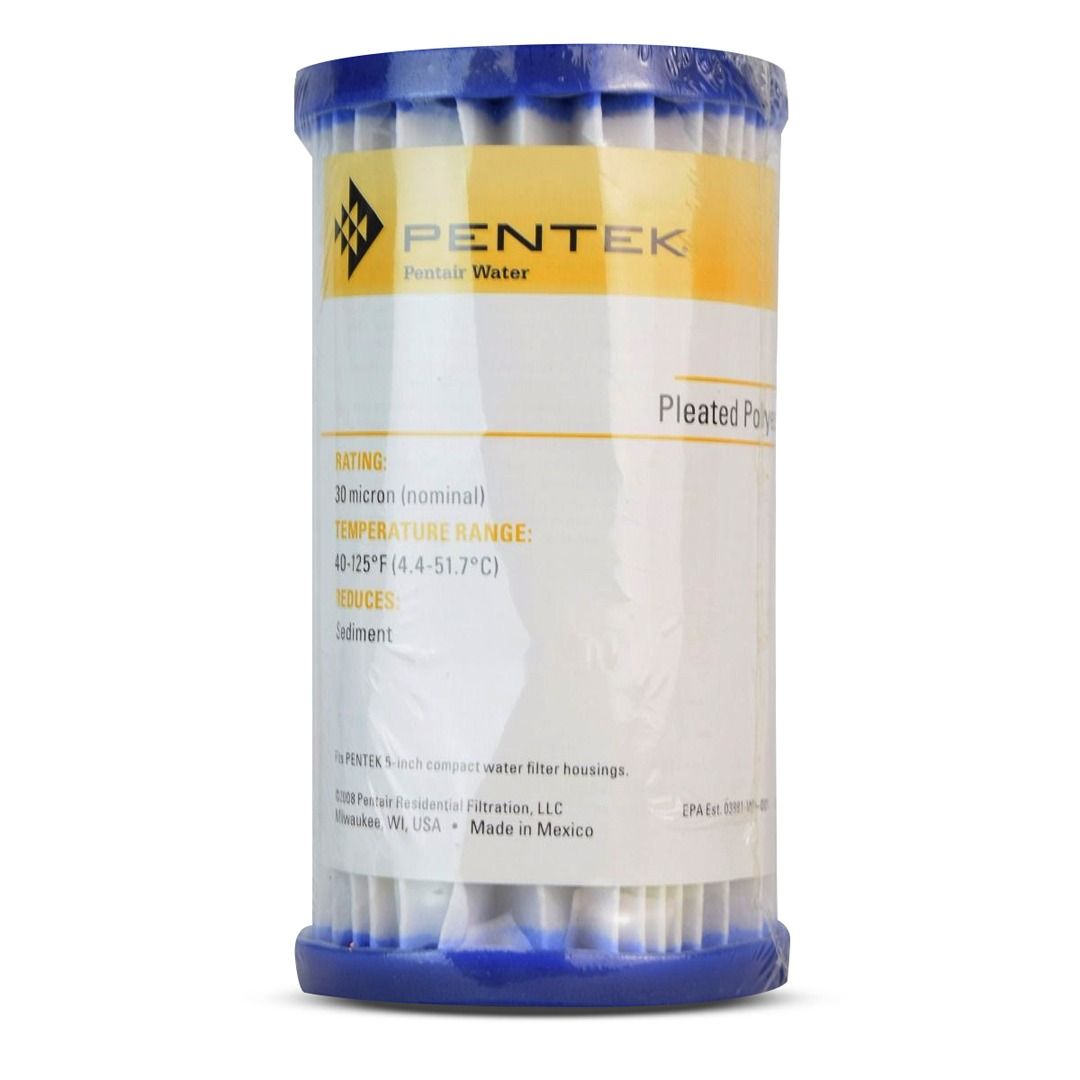

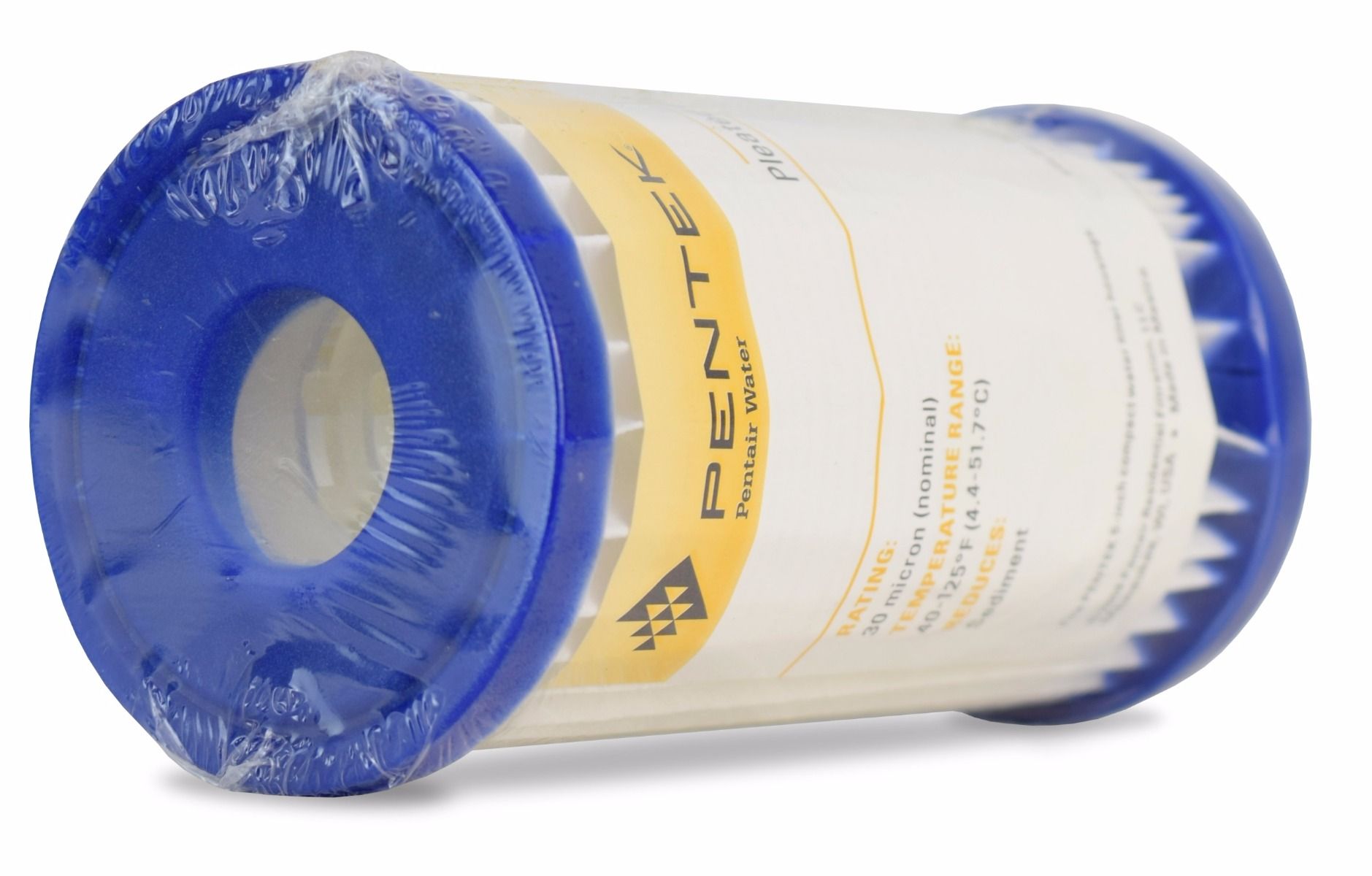

Pentek® 2-1/2" x 4-7/8" R30-478 Pleated Polyester Sediment Filter Cartridge
• Pleated design maximizes dirt-holding capacity
• Versatile and reusable, allowing for a variety of uses
• Durable polyester media is bacteria and chemical resistant
• Nominal 30-micron rating (R30) and nominal 50-micron rating (R50)
R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of !ltration uses. The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a uni!ed end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving !ltration ef!ciency. The standard 9 .75” length cartridge has more than four square feet of polyester fabric, while the larger Big Blue® version has more than 16 square feet. The media is pleated to maximize dirt-holding capacity and extend the time period between changes or cleaning. R Series cartridges are resistant to both bacteria and chemical attack making them suitable for a variety of residential, commercial and industrial applications.
