FLEXEON HT-2000 Commercial Wall Mount Reverse Osmosis System

SKU
HT-2000
Be the first to review this product
Price: $5,213.12
Free Shipping
Parts In stock
- +
  • AXEON® HF1 Low Energy Membranes
  • AXEON PVC Membrane Housings
  • AXEON by Pentair® Single O-Ring Cartridge Housing
  • AXEON Permeate and Concentrate Flow Meters
  • AXEON 0 - 100 psi Glycerin-Filled Pre-Filter Pressure Gauge
  • AXEON 0 - 300 psi Glycerin-Filled Pump Pressure Gauge
  • Manual On and Off Control Switch
  • Feed Low Pressure Switch
  • AXEON GC - Series Feed Solenoid Valve
  • AXEON 316 Stainless Steel Concentrate Valve
  • Fluid -O- Tech™ Low Lead Brass Rotary Vane High Pressure Pump
  • ODP High Efficiency Carbonator Motor
  • John Guest® Push/Pull Fittings with Locking Safety Clips
  • White Powder Coated Aluminum Frame

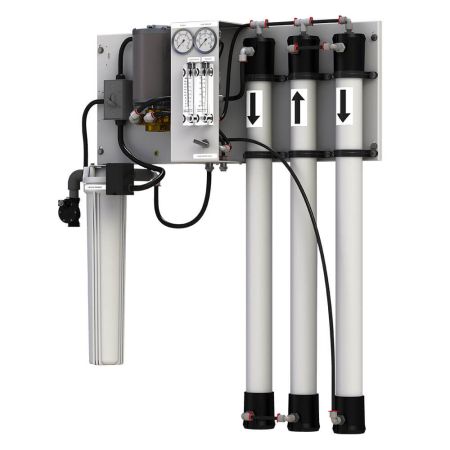

FLEXEON HT-2000 Commercial Wall Mount Reverse Osmosis System

FLEXEON HT - Series Commercial Wall Mount Reverse Osmosis Systems are designed for easy operation and service with a readily-accessible filter and membranes, and are available in five models ranging in production capacities from 250 to 2,000 gallons per day. The HT - Series models are equipped with our unique EZMount™ two - piece wall mounting system for easy installation. An optional mobile stand is also available to convert any of the HT - Series models into floor standing systems.

Standard Features

Membrane Elements

  • AXEON® HF1 Low Energy Membranes

Membrane Housings

  • AXEON PVC Membrane Housings

Filter Cartridge

  • AXEON 5 Micron Sediment Pre-Filter

Filter Housing

  • AXEON by Pentair® Single O-Ring Cartridge Housing

Instrumentation

  • AXEON Permeate and Concentrate Flow Meters
  • AXEON 0 - 100 psi Glycerin-Filled Pre-Filter Pressure Gauge
  • AXEON 0 - 300 psi Glycerin-Filled Pump Pressure Gauge

Flow Control

  • Manual On and Off Control Switch
  • Feed Low Pressure Switch
  • AXEON GC - Series Feed Solenoid Valve
  • AXEON 316 Stainless Steel Concentrate Valve

Pumps and Motors

  • Fluid -O- Tech Low Lead Brass Rotary Vane High Pressure Pump
  • ODP High Efficiency Carbonator Motor

Fittings

  • John Guest® Push/Pull Fittings with Locking Safety Clips

Frame

  • White Powder Coated Aluminum Frame

Accessories are Available

* Additional options and upgrades available

Specifications

Models System Capacity Membrane Elements Standard Recovery Nominal TDS Rejection Dimensions L x W x H in (cm) Shipping Weight lbs (kg)
GPD LPD Size Quantity
HT - 250 250 946 2521 1 33% 98% 10 x 38 x 38 (25.4 x 96.5 x 96.5) 60 (27.2)
HT - 500 500 1,893 2521 2 33% 98% 10 x 38 x 38 (25.4 x 96.5 x 96.5) 65 (29.5)
HT - 1000 1,000 3,785 2521 3 50% 98% 10 x 38 x 38 (25.4 x 96.5 x 96.5) 70 (31.8)
HT - 1500 1,500 5,678 2540 2 75% 98% 10 x 38 x 45 (25.4 x 96.5 x 114.3) 95 (43.1)
HT - 2000 2,000 7,571 2540 3 75% 98% 10 x 38 x 45 (25.4 x 96.5 x 114.3) 135 (61.2)
