WECO EXTRA-300 Whole House Reverse Osmosis Filtration Equipment | Up To 2 Baths
- Aqua-Titan-0400 ultra low energy light commercial whole house reverse osmosis water filtration system removes sediment, chlorine, chloramine, nitrate, sodium, heavy metals, TDS, chromium, fluoride, mercury, radon, benzene, lead and more contaminants.
- Works with municipal water pressure (>70 PSI). At maximum capacity produces 400 gallons per day.
- 300 Gallon atmospheric water storage tank (blue) with 16" vented manway. (36" diameter x 81" height).
- 8 GPM Polaris UV system for disinfecting water.
- Water pressure booster pump with intelligent controls provides perfect water pressure for light commercial applications, water stores and houses with up to 3 floors and 8 taps.
WECO AQUA-TITAN-0400 Whole House Reverse Osmosis System
WECO Aqua-Titan light commercial reverse osmosis filter uses four stages of water filtration to create pure drinking water, ideal for residential use, medical offices, laboratories, schools, aquariums and hydroponic growing operations. The process starts by removing tiny particles like rust, silt and insect parts. This protects your family and prevents the filtration systems from clogging. Next, the water flows through activated carbon block cartridges. These compressed carbon block filters remove taste and odor-causing chemicals like chlorine, chloramine and rotten-egg odors. Chlorine disinfection process can create cancer-causing byproducts in the water. These carcinogens, called THMs, are removed by the carbon filters. The carbon cartridges also remove organic contaminants like herbicides, insecticides and industrial chemicals that seep into groundwater. The next step involves the reverse osmosis (RO) process. Here water is “squeezed” through a special membrane. Heavy metals, like lead and mercury, are removed while purified water passes through. The RO process also removes salts, fluoride, radon and benzene. The Aqua-Titan makes refreshing water the whole family will enjoy. Aqua-Titan filtration system is pre-assembled can be installed with simple hand tools. We recommend installation by a licensed plumber to insure adherence to all local codes. Routine replacement of the filter cartridges is recommended to maintain filter performance.
Depending upon your specific water chemistry, you may need RO pre-treatment. Please consult with one of our WQA certified water specialists if your TDS levels exceed 500 ppm, have hard water or iron staining issues or high silica content in water.

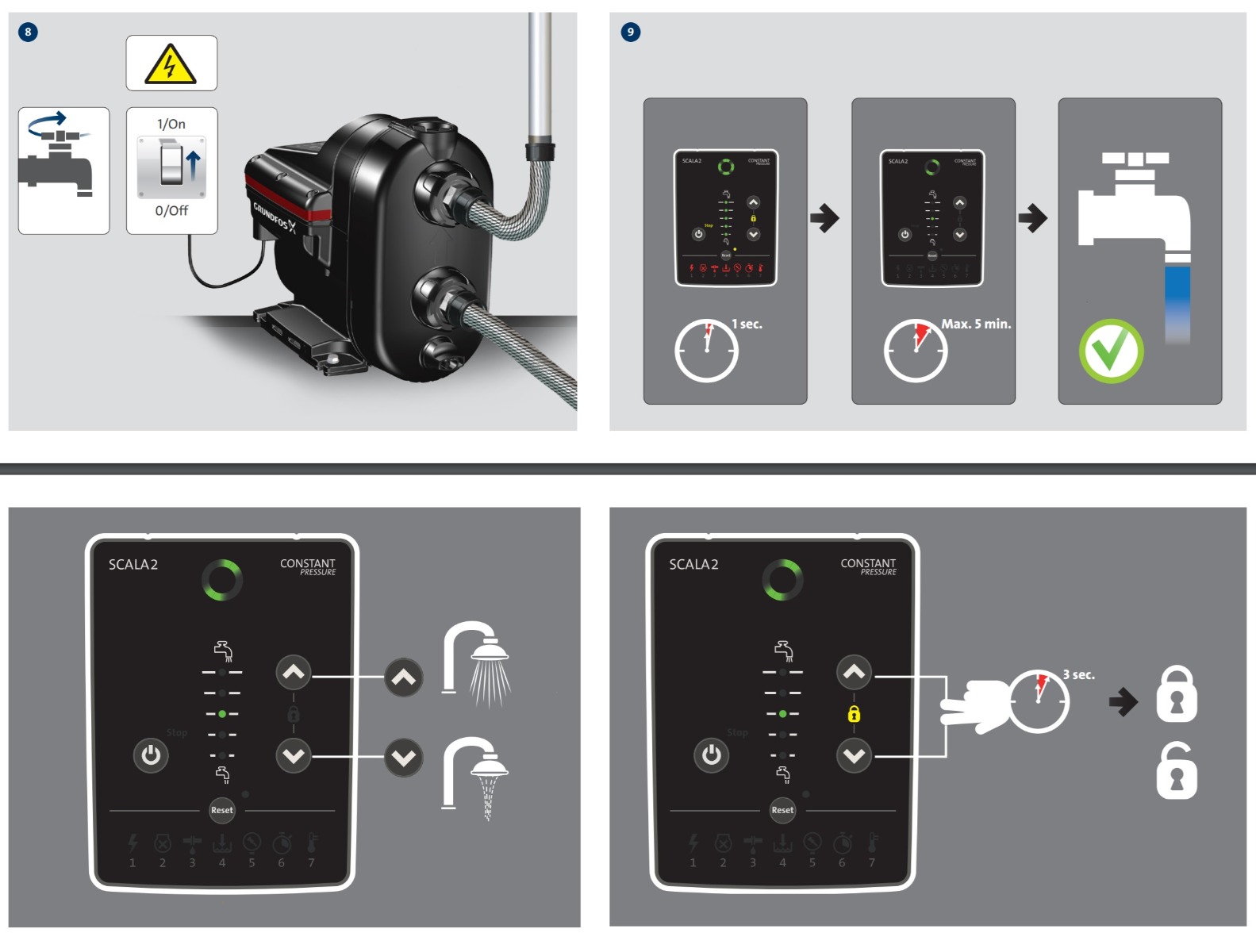

SCALA2 for Prefect Water Pressure
GRUNDFOS SCALA2 is a fully integrated water booster pump delivering perfect water pressure to all taps. It features pump, motor, tank, sensor, drive and non-return valve in one compact unit that installs quickly and easily.
With its intelligent pump control, SCALA2 adjusts performance to any demand – and with its water-cooled motor, it offers one of the lowest noise levels in its class. The result is maximum comfort with minimum effort.
Standard Features
Membrane Elements
Membrane Housings
Filter Cartridge
Filter Housings
Flow Control
Brackets and Clips
RO Specifications
| Model | System Capacity | Membrane Elements | Standard Recovery | Nominal TDS Rejection | Dimensions L x W x H in (cm) | Shipping Weight lbs (kg) | ||
|---|---|---|---|---|---|---|---|---|
| GPD | LPD | Size | Quantity | |||||
| AQUA-TITAN-0400 | 400 | 1,514 | 2521 | 1 | 50% | 98.0% | 12 x 15 x 34(31 x 38 x 86) | 70 (32) |
UV Disinfection System Specifications
| Model | System Capacity | In/Out | System Length |
|---|---|---|---|
| UVA-8C | 8 GPM | 3/4” | 27” |
Atmospheric Storage Tank Specifications
| Model | Capacity | Inlet Connection | Outlet Connection | Manway | Width | Height | Empty Weight | Certification |
|---|---|---|---|---|---|---|---|---|
| 61-TKT03U | 300 Gallons | 1½” Bulkhead NPT | 2” Bulkhead NPT | 16” | 36” | 81” | 80 lbs. | FDA 21CFR 177.1520(1) 3.1 and 3.2 |
