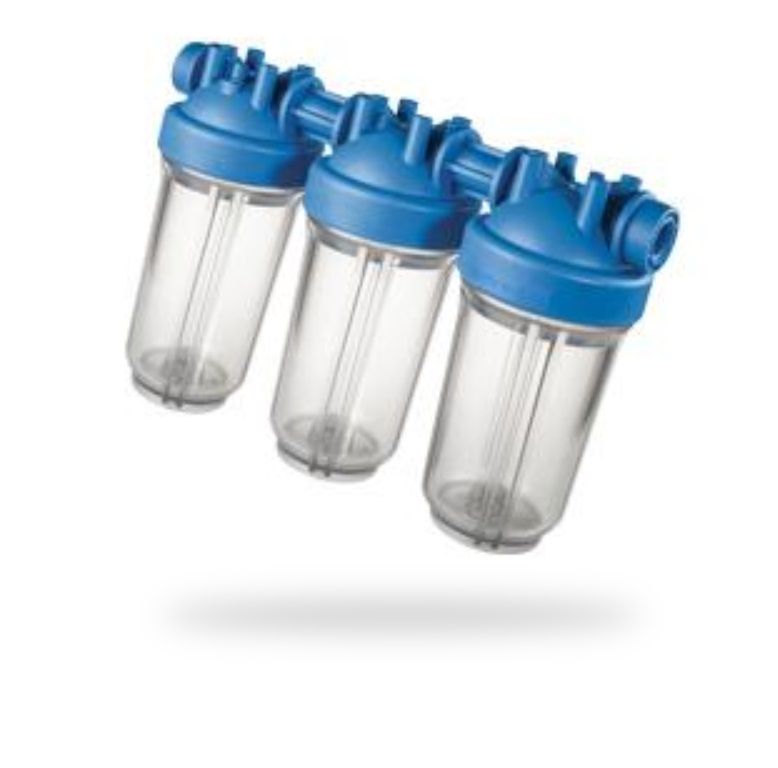

Atlas Filtri DP BIG TRIO Filter System with Pressure Relief

SKU
AF-DP-BIG-TRIO
Be the first to review this product
In stock
- +
  • All housings with pressure rating at 120 psi (8.3 bar) temperature rating at 113° F (45°C)
  • Suitable for cartridges within 4” and 4.5”OD
  • Available in 10” lengths
  • NPT connection ports 1”
  • Models also available with gauges and drains
  • Materials reinforced PP and PE

Atlas Filtri Full Flow Filter System with Pressure Relief

Atlas Filtri DP BIG full-flow housings are designed for cartridges with an outer diameter of 4.5” (from 4.0” to 4.5” applicable) and a pressure rating of 120 PSI. Available with NPT tapered IN/OUT connections in 1” and 1”1/2, the housings adapt to any large capacity filtration or heavy duty application. DP BIG housings are available in blue or clear sumps and are offered in 10” or 20” lengths and come in MONO (single), DUO (double) and TRIO (triple) versions. Head assemblies in the double and triple version are patented and uniquely designed as a single manifold unit. This exclusive design reduces labor costs and liability of water leaks, making installation faster and easier, saving both time and money. Unique optional features include single, double and triple manifolds equipped with a drain port at the bottom of the housing and gauge connections at the top. Gauges and drain kits are offered separately, as needed for the design of the system. All DP BIG housings are provided with a specially designed wrench to remove the housing sump from the head assembly as well as the drain plug from the bottom of the housing sump, and LubriKit (food grade lubricant to be used to lubricate the housing O-ring). Dedicated accessories are available including: single, double and triple metal wall mount brackets, stand frame kits, drain kit, gauges.

Standard Features

Ratings

  • All housings with pressure rating at 120 psi (8.3 bar) temperature rating at 113° F (45°C)

Compatibility

  • Suitable for cartridges within 4” and 4.5”OD

Connections

  • NPT connection ports 1”

Features

  • DUO/double or TRIO/triple unique manifold patented heads
  • Materials reinforced PP and PE

Options

  • Models also available with gauges and drains

Accessories Available

Specifications

Port Size Temperature Max. Pressure Materials
Min Max Heads Blue Sumps Clear Sumps O-rings
1" 39.2°F (4°C) 113°F (45°C) 120 psi (8.3 bar) reinforced polypropylene reinforced polypropylene PET EPDM
